Place of Origin: | CHINA |
Brand Name: | Tecon |
Certification: | CE |
Model Number: | ZT9804S+HD4916B |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 5 months after received your payment |
Payment Terms: | L/C, T/T |
Supply Ability: | 16pcs per year |
Working Hour: | 22 Hours/day | Air Consumption: | 1,100L/min |
---|---|---|---|
Servo System: | Yes | Weight: | 30 Ton |
Main Drive Motor: | 30kw | Speed: | 100-120 Pcs/ Min |
Glue Type: | Starch Glue | Printing Ink: | Water-based Ink |
High Light: | machines for making paper bags,cement bag machine |

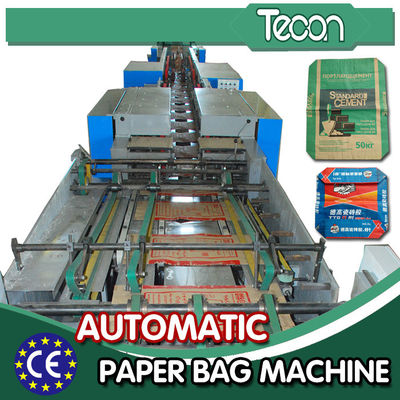

Cement Bag Machines For Making Paper Bags , Automatic Deviation Rectifying System
Seaworthy packing;
covered in film and packed in pallet.
Five 40 HQ container for shipment

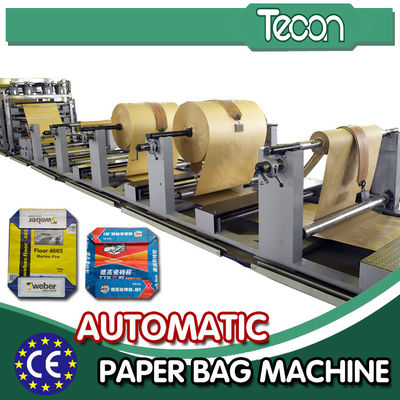

ZT9804S Tuber Machine
Performance
|
80~120 tubes/min(Depends on paper quality, number of ply and operators’ skill.) |
Tube length |
400~1400 mm |
Tube width |
380~620 mm |
Type of cutting |
Step cut&Flat cut |
Number of ply |
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film) |
Printing width |
1300 mm(MAX) |
Paper reel width |
660~1260 mm |
Paper reel diameter |
Max. 1, 300 mm |
Main drive motor |
47kw |
Size of whole set |
35.3m×2.4m×2.7m( L×W×H) |
Total weight |
32 T |
Composing of the machine
ZT9804S Tuber Machine
Name |
Quantity |
4-color printing machine |
1 |
Paper reel stands |
5 |
Paper web guide |
1 |
Automatic paper rectifier |
1 |
Auxiliary paper driver |
1 |
Perforation unit |
1 |
Latitudinal gluing machine |
1 |
Longitude gluing machine |
1 |
Tubes forming unit |
1 |
Driving tearing-off unit |
1 |
Delivery and counting unit |
1 |
Electric control system |
1 (Schneider) |
Air compressor |
1 |
Servo system |
1 |

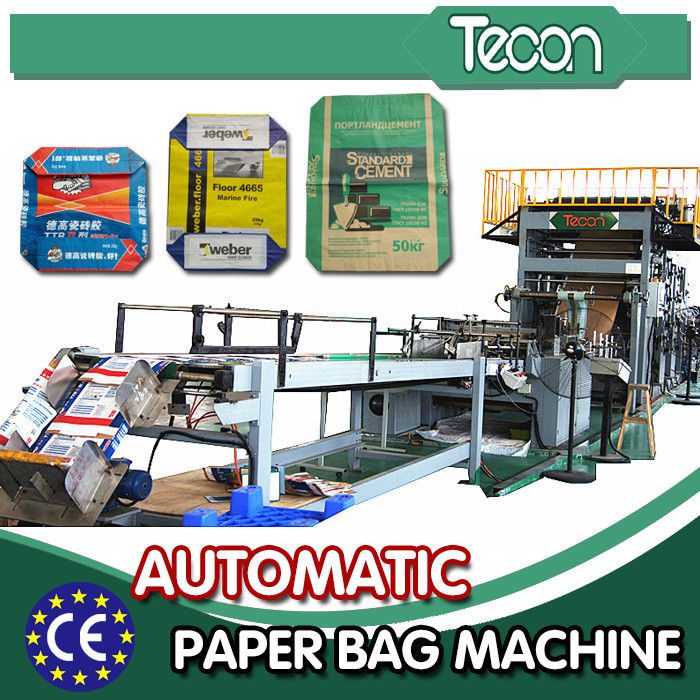

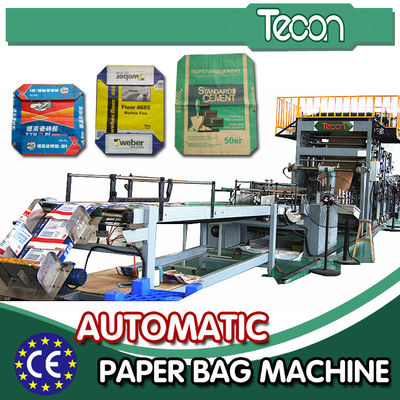

HD4916B Bottomer Machine
(bottomer with strength sheet pasting unit)
Operating condition
Working hour |
22 hours/day |
Design temperature |
0~40℃ |
Design humidity |
MAX. 95% |
Number required |
1 unit |
Model name |
HD4916B |
Performance
Max Speed |
110 bags/min(Depends on paper quality, number of ply and operators’ skill.) |
Bag length |
520~880mm |
Bag width |
420~600 mm |
Bottom width |
90~160mm |
Bottom open width |
200~440mm |
Distance between bottom centers |
420~780mm |
Valve sheet length |
100~300mm(adjustable) |
Valve sheet width |
120~240mm(adjustable) |
Main drive motor |
33kw |
Total weight |
25T |
Size of whole set |
23.5m×1.8m×1.8m ( L×W×H) |
Valve sheet reel diameter |
Max.1,300mm |
Number Patch Length |
(2~4)layers+1PP film |
Composing of the production line
HD4916B Bottomer Machine
(bottomer with strength sheet pasting unit)
Name |
Quantity |
High speed feeder machine |
1 |
Perforation of the exhaust outlet unit |
1 |
Tube opening unit |
1 |
Automatic gluing machine |
1 |
Scrip sealing machine |
1 |
Bag bottom turning unit |
1 |
Counting and delivery line |
1 |
Automatic delivering out unit |
1 |
Piling up platform |
1 |
Electric control unit |
1 (German Siemens) |
Vacuum-pump |
1 (German Rietschele) |
Bearing |
(Janpan NSK) |
Foshan Tecon Package Machinery CO., LTD is a high-tech equipment manufacturer.
We designed the first production line for paper bag 20 years ago, that's is about 1996, and now we are listed in the world top three in this industry and the only one in China able to design & manufacture the whole production line of bottom sealed paper bag.
The leading product of our company is the "high-speed automatic bottom-pasted bag making machine". It is composed of a tuber machine and a bottomer machine.
