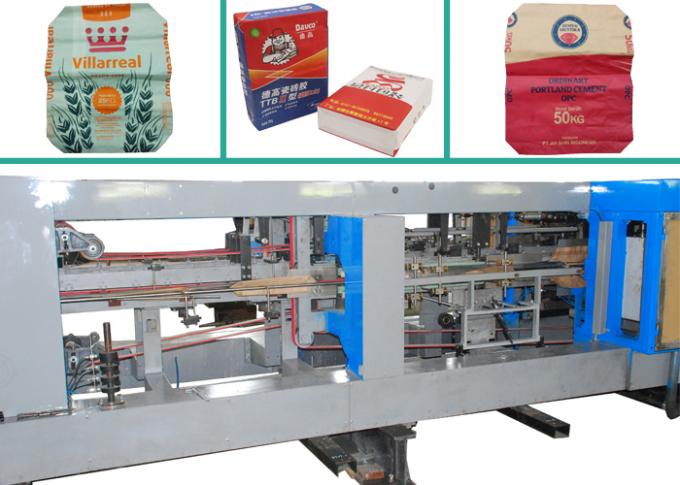

High Speed Automatic Paper Bag Making Machine / Sugar Valve Paper Bags Production Line
Product Details:
| Place of Origin: |
China |
| Brand Name: |
Tecon |
| Certification: |
CE |
| Model Number: |
HD4916+ZT9804 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1pcs |
| Price: |
negotiation |
| Packaging Details: |
Wooden case |
| Delivery Time: |
5 months after received your payment |
| Payment Terms: |
L/C, T/T |
| Supply Ability: |
16pcs per year |
Contact Now
Detailed Product Description
| Tuber Size: |
34.3m×2.4m×2.7m( L×W×H) |
Bottomer Size: |
22m×1.8m×1.8m( L×W×H) |
| Tuber Speed: |
130~150 Tubes/min(Depends On Paper Quality, Number Of Ply And Operators’ Skill.) |
Bottomer Speed: |
120 Bags/min(Depends On Paper Quality, Number Of Ply And Operators’ Skill.) |
| Tube Length: |
670~1035 Mm |
Tube Width: |
420~600 Mm |
| High Light: |
automatic paper bag manufacturing machine, automatic paper bag machine |
Price Negotiable Automatic and High-speed Valve Paper Bag Making Machine for Sugar
- Technical parameters of our production line
HD4916 Bottomer Machine
Operating condition
Working hour | 22 hours/day |
Design temperature | 0~40℃ |
Design humidity | MAX. 95% |
Number required | 1 unit |
Model name | HD4916 |
Performance
Speed | 120 bags/min(Depends on paper quality, number of ply and operators’ skill.) |
Bag length | 520~880mm |
Bag width | 420~600 mm |
Bottom width | 90~160mm |
Bottom open width | 200~440mm |
Distance between bottom centers | 420~780mm |
Valve sheet length | 100~300mm(adjustable) |
Valve sheet width | 120~240mm(adjustable) |
Main drive motor | 33kw |
Total weight | 25T |
Size of whole set | 22m×1.8m×1.8m ( L×W×H) |
Valve sheet reel diameter | Max.1,300mm |
Composing of the production line
HD4916 Bottomer Machine
Name | Quantity |
High speed feeder machine | 1 |
Perforation machine | 1 |
Tube opening unit | 1 |
Automatic gluing machine | 1 |
Scrip sealing machine | 1 |
Bag bottom turning unit | 1 |

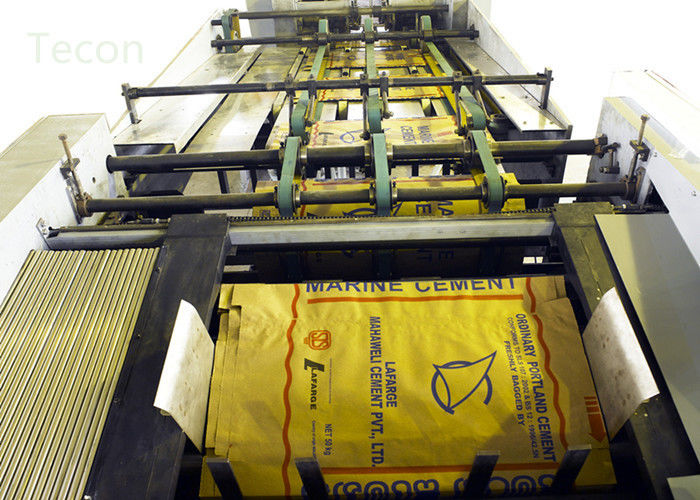

Counting and delivery line | 1 |
Automatic delivering out unit | 1 |
Piling up platform | 1 |
Electric control unit | 1 |
Vacuum-pump | 1 |
ZT9804 Tuber Machine
Operating condition
Working hour | 22 hours/day |
Design temperature | 0~40℃ |
Design humidity | MAX. 95% |
Number required | 1 unit |
Model name | ZT9804 |
Performance
Speed | 130~150 tubes/min(Depends on paper quality, number of ply and operators’ skill.) |
Tube length | 670~1035 mm |
Tube width | 420~600 mm |
Space between tape steps | 20 mm |
Tube Cut Length | 670~1035mm |
Number of ply | 2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film) |
Diameter of print roller | ø144～ø314 mm |
Printing width | 1300 mm(MAX) |
Paper reel width | 860~1260 mm |
Paper reel diameter | Max. 1, 300 mm |
Air consumption | 1,100L/min |
Main drive motor | 30kw |
Size of whole set | 34.3m×2.4m×2.7m( L×W×H) |
Total weight | 30 T |
Composing of the production line
ZT9804 Tuber Machine
Name | Quantity |

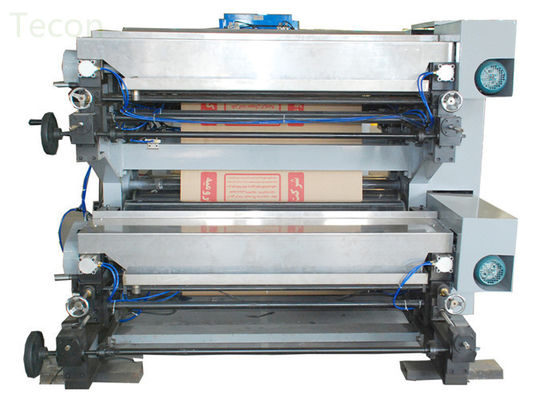

4-color printing machine | 1 |
Paper reel stands | 1 |
Paper web guider | 1 |
Automatic paper rectifier | 1 |
Auxiliary paper driver | 1 |
Perforation machine | 1 |
Latitudinal gluing machine | 1 |
Longitude gluing machine | 1 |
Tubes forming unit | 1 |
Driving tearing-off | 1 |
Delivery & counting line | 1 |
Electric control system | 1 (Schneider, German) |
Air compressor | 1 |
- Features of our full-automatic paper bag production line
- Flat & glued bottom with filling valve;
- Different types for cement, chemicals, foods, tea, etc.
- 4-color automatic printing
- 2~4 paper layers, with one extra PE/PP film available
- 35~50 million bags/year
- Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
- Full technical service for installation, training and maintenance
- Full solution for factory construction and materials purchase.
