Kraft Cement Paper Bag Making Machine / Sugar Valve Paper Bag Making Equipment

Kraft Cement Paper Bag Making Machine / Sugar Valve Paper Bag Making Equipment

    • Kraft Cement Paper Bag Making Machine / Sugar Valve Paper Bag Making Equipment
    • Kraft Cement Paper Bag Making Machine / Sugar Valve Paper Bag Making Equipment
  • Kraft Cement Paper Bag Making Machine / Sugar Valve Paper Bag Making Equipment

    Product Details:

    Place of Origin: China
    Brand Name: Tecon
    Certification: CE
    Model Number: HD4913+ZT9804

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Wooden case
    Delivery Time: 5 months after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 16pcs per year
    Contact Now
    Detailed Product Description
    Tube Length: 670~1035 Mm Printing: 4-colour
    Tube Width: 420~600 Mm Bag Length: 520~880mm
    Bag Width: 420~600 Mm Total Weight: 52.7T
    High Light:

    cement bag making machine

    ,

    cement bag machine

    Negotiable Price Cement Kraft Paper Bag and Valve Paper Bag Making Machine for Sugar




    • Features of our full-automatic paper bag production line
    1. Flat & glued bottom with filling valve;
    2. Different types for cement, chemicals, foods, tea, etc.
    3. 2-color automatic printing
    4. 2~4 paper layers, with one extra PE/PP film available
    5. 35~50 million bags/year
    6. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
    • Technical parameters of our production line

    HD4913 Bottomer Machine

    Operating condition

    Working hour

    22 hours/day

    Design temperature

    0~40℃

    Design humidity

    MAX. 95%

    Number required

    1 unit

    Model name

    HD4913

    Performance

    Speed

    80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)

    Bag length

    520~880mm

    Bag width

    420~600 mm

    Bottom width

    90~130mm

    Bottom open width

    200~380mm

    Distance between bottom centers

    420~780mm

    Valve sheet length

    100~250mm

    Valve sheet width

    120~170mm

    Main drive motor

    33kw

    Total weight

    22.7T

    Size of whole set

    21.3m×2.3.m×1.8m ( L×W×H)

    Valve sheet reel diameter

    Max.1,300mm

    Composing of the production line

    HD4913 Bottomer Machine

    Name

    Quantity

    High speed feeder machine

    1

    Perforation machine

    1

    Tube opening unit

    1

    Automatic gluing machine

    1

    Scrip sealing machine

    1

    Bag bottom turning unit

    1

    Counting and delivery line

    1

    Automatic delivering out unit

    1

    Piling up platform

    1

    Electric control unit

    1 (Schneider, German)

    Vacuum-pump

    1 (Schneider, German)



    ZT9804 Tuber Machine
    Operating condition

    Working hour

    22 hours/day

    Design temperature

    0~40℃

    Design humidity

    MAX. 95%

    Number required

    1 unit

    Model name

    ZT9804

    Performance


    Speed

    130~150 tubes/min(Depends on paper quality, number of ply and operators’ skill.)

    Tube length

    670~1035 mm

    Tube width

    420~600 mm

    Space between tape steps

    20 mm

    Tube Cut Length

    670~1035mm

    Number of ply

    2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)

    Diameter of print roller

    ø144~ø314 mm

    Printing width

    1300 mm(MAX)

    Paper reel width

    860~1260 mm

    Paper reel diameter

    Max. 1, 300 mm

    Air consumption

    1,100L/min

    Main drive motor

    30kw

    Size of whole set

    34.3m×2.4m×2.7m( L×W×H)

    Total weight

    30 T

    Composing of the production line
    ZT9804 Tuber Machine

    Name

    Quantity

    4-color printing machine

    1

    Paper reel stands

    1

    Paper web guider

    1

    Automatic paper rectifier

    1

    Auxiliary paper driver

    1

    Perforation machine

    1

    Latitudinal gluing machine

    1

    Longitude gluing machine

    1

    Tubes forming unit

    1

    Driving tearing-off

    1

    Delivery & counting line

    1

    Electric control system

    1 (Schneider, German)

    Air compressor

    1

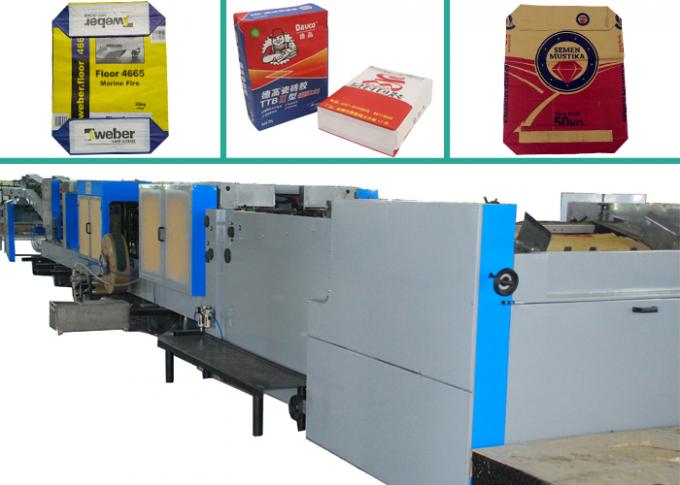

    • Our Machine

    Kraft Cement Paper Bag Making Machine / Sugar Valve Paper Bag Making Equipment
