Place of Origin: | CHINA |
Brand Name: | Tecon |
Certification: | CE |
Model Number: | ZT9804S+HD4916BD |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 5 months after received your payment |
Payment Terms: | L/C, T/T |
Supply Ability: | 16pcs per year |
Working Hour: | 22 Hours/day | Air Consumption: | 1,100L/min |
---|---|---|---|
Servo System: | Yes | Number Of Ply: | 2~4paper+1 PP/PE |
Max Speed: | 80 Bags/min | Strength Sheet: | Double |
High Light: | machines for making paper bags,cement bag machine |

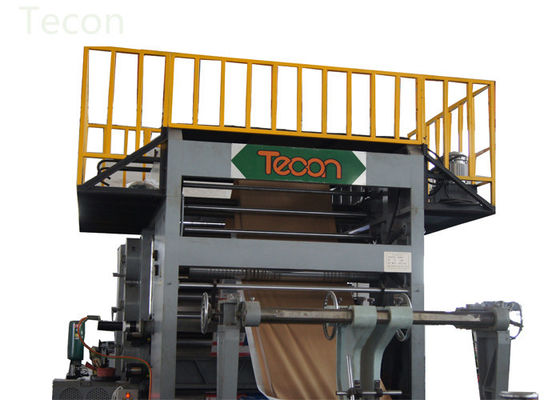

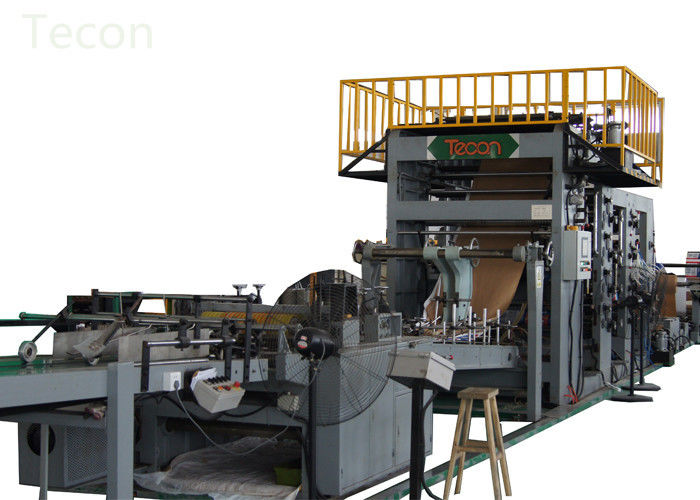

China Origin CE Certificate Cement Paper Bag Making Machine with Deviation Rectifying System
ZT9804S Tuber Machine
Operating condition
Working hour | 22 hours/day |
Design temperature | 0~40℃ |
Design humidity | MAX. 95% |
Number required | 1 unit |
Model name | ZT9804S |
Performance
| 80~120 tubes/min(Depends on paper quality, number of ply and operators’ skill.) |
Tube length | 400~1400 mm |
Tube width | 380~620 mm |
Type of cutting | Step cut&Flat cut |
Number of ply | 2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film) |
Printing width | 1300 mm(MAX) |
Paper reel width | 660~1260 mm |
Paper reel diameter | Max. 1, 300 mm |
Main drive motor | 47kw |
Size of whole set | 35.3m×2.4m×2.7m( L×W×H) |
Total weight | 32 T |
Composing of the machine
ZT9804S Tuber Machine
Name | Quantity |
4-color printing machine | 1 |
Paper reel stands | 5 |
Paper web guide | 1 |
Automatic paper rectifier | 1 |
Auxiliary paper driver | 1 |
Perforation unit | 1 |
Latitudinal gluing machine | 1 |
Longitude gluing machine | 1 |
Tubes forming unit | 1 |
Driving tearing-off unit | 1 |
Delivery and counting unit | 1 |
Electric control system | 1 (Schneider) |
Air compressor | 1 |
Servo system | 1 |
HD4916BD Bottomer Machine
(bottomer with strength sheet pasting unit)
Operating condition
Working hour | 22 hours/day |
Design temperature | 0~40℃ |
Design humidity | MAX. 95% |
Number required | 1 unit |
Model name | HD4916BD |
Performance
| HD4916BD |
Speed | MAX 80 bags/min |

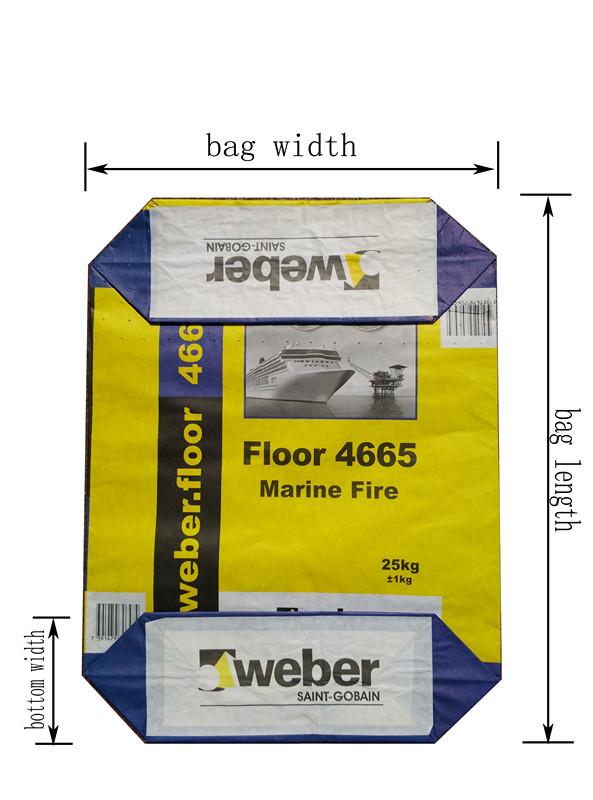

Tube Width | 380~620 mm |
Bottom Width | 80~160 mm |
Valve Sheet Length *Width | (100-300)﹡(120-340)adjustable |
Bag Length | 390~1020 mm |
Bottom Center Distance | 290~860 mm |
Number of ply | 2~4paper+1 PP/PE |
Strength sheet unit | YES |
Strength sheet length *width | (270~520)﹡(80~160) |
Main Drive Motor | 35KW |
Machine size | 23.5﹡2.3﹡1.8(M) |
Machine weight | N34(T) |
Composing of the production line
HD4916BD Bottomer Machine
(bottomer with strength sheet pasting unit)
Name | Quantity |
High speed feeder machine | 1 |
Perforation of the exhaust outlet unit | 1 |
Tube opening unit | 1 |
Automatic gluing machine | 1 |
Scrip sealing machine | 1 |
Bag bottom turning unit | 1 |
Counting and delivery line | 1 |
Automatic delivering out unit | 1 |
Piling up platform | 1 |
Electric control unit | 1 (German Siemens) |
Vacuum-pump | 1 (German Rietschele) |
Bearing | (Janpan NSK) |
