33KW High Efficiency Glued Valve Paper Bags Making Machine for Cement , Lime Bag
Product Details:
| Place of Origin: |
CHINA |
| Brand Name: |
Tecon |
| Certification: |
CE |
| Model Number: |
ZT9804S+HD4916 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1pcs |
| Price: |
negotiation |
| Packaging Details: |
Wooden case |
| Delivery Time: |
5 months after received your payment |
| Payment Terms: |
L/C, T/T |
| Supply Ability: |
16pcs per year |
Contact Now
Detailed Product Description
| Printing: |
4 - Colour |
Air Consumption: |
1,100L/min |
| Servo System: |
Yes |
Number Of Ply: |
2~4paper+1 PP/PE |
| Speed: |
120 Bags/min |
Distance Between Bottom Centers: |
420~780mm |
| High Light: |
cement bag making machine, machines for making paper bags |
33kw High-speed Glued Valve Paper Bags Making Machine for Cement , Lime
- Features of our full-automatic paper bag production line

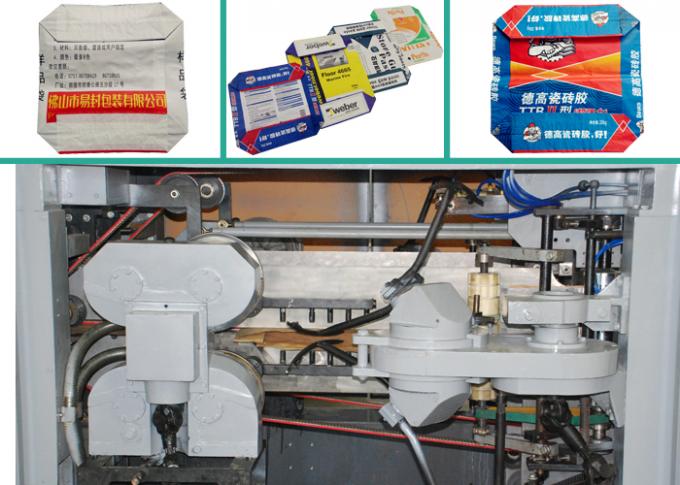

- Flat & glued bottom with filling valve;
- Different types for cement, chemicals, foods, tea, etc.;
- 4-color automatic printing ;
- 2~4 paper layers, with one extra PE/PP film available ;
- 35~50 million bags/year;
- Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system ;
- Full technical service for installation, training and maintenance;
- Full solution for factory construction and materials purchase.
- Technical parameters of our production line
ZT9804S Tuber Machine
Operating condition
Working hour | 22 hours/day |
Design temperature | 0~40℃ |
Design humidity | MAX. 95% |
Number required | 1 unit |
Model name | ZT9804S |
Performance
Speed | 80~120 tubes/min(Depends on paper quality, number of ply and operators’ skill.) |
Tube length | 400~1400 mm |
Tube width | 380~620 mm |
Type of cutting | Step cut&Flat cut |
Number of ply | 2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film) |
Printing width | 1300 mm(MAX) |
Paper reel width | 660~1260 mm |
Paper reel diameter | Max. 1, 300 mm |
Main drive motor | 47kw |
Size of whole set | 35.3m×2.4m×2.7m( L×W×H) |
Total weight | 32 T |
Composing of the machine
ZT9804S Tuber Machine
Name | Quantity |

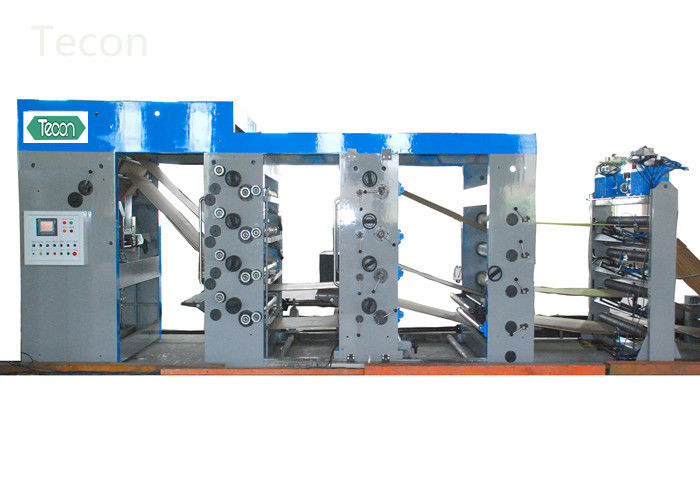

4-color printing machine | 1 |
Paper reel stands | 5 |
Paper web guide | 1 |
Automatic paper rectifier | 1 |
Auxiliary paper driver | 1 |
Perforation unit | 1 |
Latitudinal gluing machine | 1 |
Longitude gluing machine | 1 |
Tubes forming unit | 1 |
Driving tearing-off unit | 1 |
Delivery and counting unit | 1 |
Electric control system | 1 (Schneider) |
Air compressor | 1 |
Servo system | 1 |

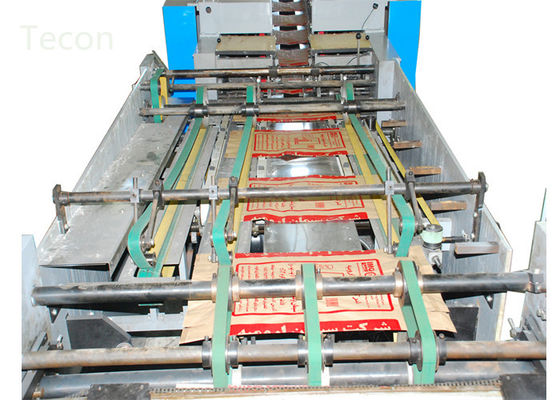

HD4916 Bottomer Machine
Operating condition
Working hour | 22 hours/day |
Design temperature | 0~40℃ |
Design humidity | MAX. 95% |
Number required | 1 unit |
Model name | HD4916 |
Performance
Speed | 120 bags/min(Depends on paper quality, number of ply and operators’ skill.) |
Bag length | 520~880mm |
Bag width | 420~600 mm |
Bottom width | 90~160mm |
Bottom open width | 200~440mm |
Distance between bottom centers | 420~780mm |
Valve sheet length | 100~300mm(adjustable) |
Valve sheet width | 120~240mm(adjustable) |
Main drive motor | 33kw |
Total weight | 25T |
Size of whole set | 22m×1.8m×1.8m ( L×W×H) |
Valve sheet reel diameter | Max.1,300mm |
Composing of the production line
HD4916 Bottomer Machine
Name | Quantity |
High speed feeder machine | 1 |
Perforation machine | 1 |
Tube opening unit | 1 |
Automatic gluing machine | 1 |
Scrip sealing machine | 1 |
Bag bottom turning unit | 1 |
Counting and delivery line | 1 |
Automatic delivering out unit | 1 |
Piling up platform | 1 |
Electric control unit | 1 |
Vacuum-pump | 1 |
