Full Automatic Cement or Chemicals Paper Bag Making Machines / Machinery / Production Line

High-speed and Full-automatic Paper Bag Making Machine for Cement , Chemicals



• Features of our full-automatic paper bag production line

1. Flat & glued bottom with filling valve;
2. Different types for cement, chemicals, foods, tea, etc.
3. 2-color automatic printing
4. 2~4 paper layers, with one extra PE/PP film available
5. 35~50 million bags/year
6. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
7. Full technical service for installation, training and maintenance
8. Full solution for factory construction and materials purchase.

• Technical parameters of  ZT9802

  Item No.	Name		Unit	Specification     Value
  1	Bag Spew.	Length of bag tube	㎜	Cutoff length + 40
  		Cutoff length	㎜	700 -1050(±4)29 Grades,Each grade 12.5
  		Width of bag tube	㎜	400 – 600(no grade) adjustment
  2	Printing spew.	Printing length	㎜	600 – 950
  		Printing width	㎜	1100
  		Printing ink		Ink
  		Color category		two-color overprint, four-color overprint
  		Formed thickness	㎜	6
  3		Paper layer	layer	3 – 4
  4		Production efficiency	bag / min	100 – 150
  		Name of Glue		Metamorphic Starch, Methyl or CMC
  5	Scroll spew.	Width of Scroll	㎜	1220
  		Scroll diameter	㎜	1220
  		Diameter of scroll core	㎜	75 – 80
  6	Main motor	Main Motor		Y180L – 4 TYPE, 22KW  1 unit
  		Main motor, delta belt		C-type, length: 2500mm quantity: 6
  7	Total power		KW	30.9
  	Weight		T	34
  	Outline dimensions (Length x Width x Height)		M	34 x 2.4 x 2.7




   HD4913B Bottomer Machine

  Operating condition

  Working hour	22 hours/day
  Design temperature	0~40℃
  Design humidity	MAX. 95%
  Number required	1 unit
  Model name	HD4913B

  Performance

  Speed	80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)
  Bag length	520~880mm
  Bag width	420~600 mm
  Bottom width	90~130mm
  Bottom open width	200~380mm
  Distance between bottom centers	420~780mm
  Valve sheet length	100~250mm
  Valve sheet width	120~170mm
  Main drive motor	33kw
  Total weight	22.7T
  Size of whole set	21.3m×2.3.m×1.8m ( L×W×H)
  Valve sheet reel diameter	Max.1,300mm

  Composing of the production line

  HD4913B Bottomer Machine

  Name	Quantity
  High speed feeder machine	1
  Perforation machine	1
  Tube opening unit	1
  Automatic gluing machine	1
  Scrip sealing machine	1
  Bag bottom turning unit	1
  Counting and delivery line	1
  Automatic delivering out unit	1
  Piling up platform	1
  Electric control unit	1 (Schneider, German)
  Vacuum-pump	1 (Schneider, German)

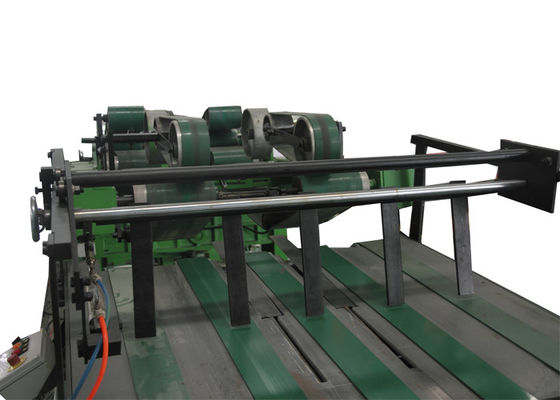

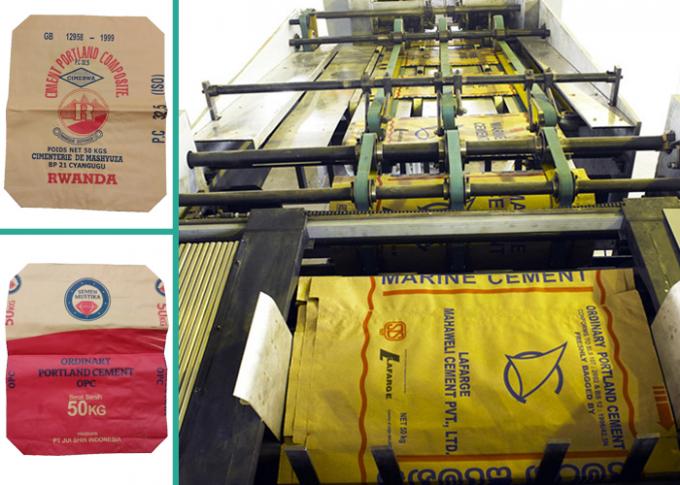

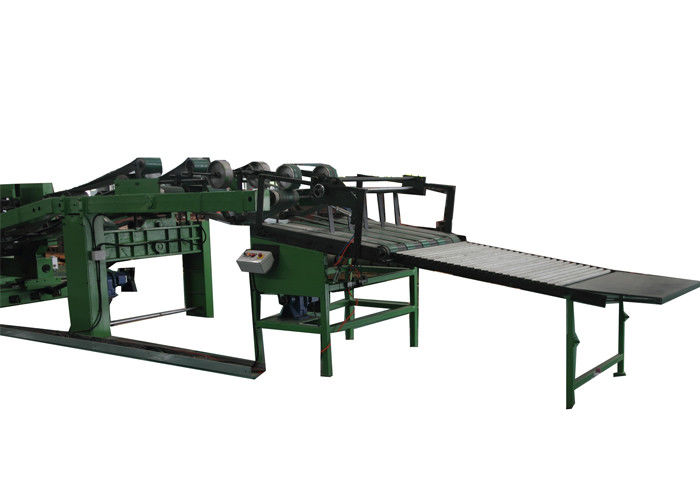

• Our Machine
