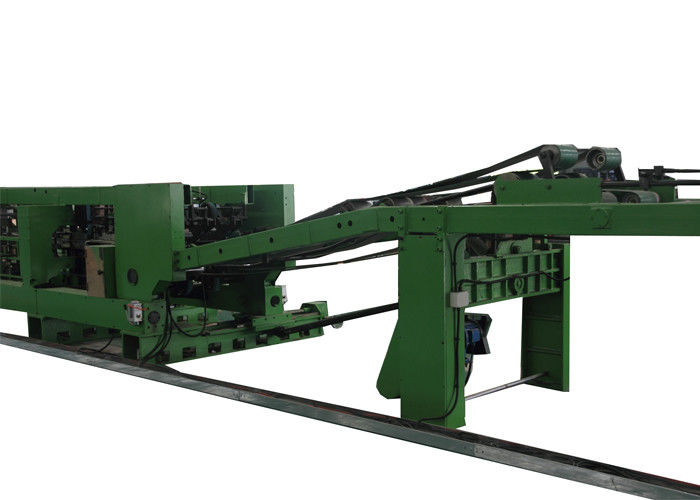

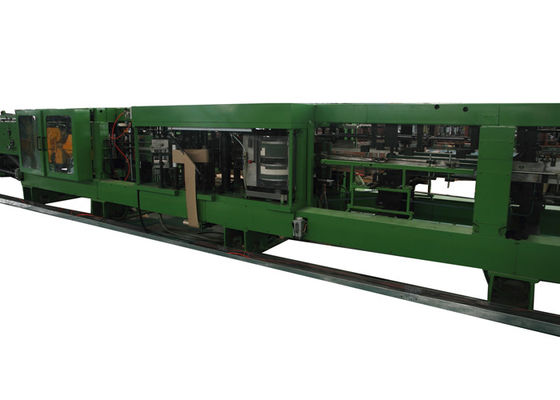

High-speed Automatic Kraft Paper Bag Making Machine for Seeds , Grains , Food Paper Bags
Product Details:
| Place of Origin: |
China |
| Brand Name: |
Tecon |
| Certification: |
CE |
| Model Number: |
ZT9802+HD49169 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1UNIT |
| Price: |
negotiation |
| Packaging Details: |
Wooden case |
| Delivery Time: |
5 months after received your payment |
| Supply Ability: |
8 units per year |
Contact Now
Detailed Product Description
| Total Weight: |
55T |
Material: |
Paper |
| Valve: |
Yes |
Printing: |
2-colour |
| Design Temperature: |
0~40℃ |
Working Hour: |
22 Hours/day |
| High Light: |
automatic bag making machine, automatic paper bag machine |
High-speed Automatic Kraft Paper Bag Making Machine for Seeds , Grains , Food
- Features of our full-automatic paper bag production line
- Flat & glued bottom with filling valve;
- Different types for cement, chemicals, foods, tea, etc.
- 2-color automatic printing
- 2~4 paper layers, with one extra PE/PP film available
- 35~50 million bags/year
- Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
- Full technical service for installation, training and maintenance
- Full solution for factory construction and materials purchase.
- Technical parameters of ZT9802
Item No. | Name | Unit | Specification Value |
1 | Bag Spew. | Length of bag tube | ㎜ | Cutoff length + 40 |
Cutoff length | ㎜ | 700 -1050(±4)29 Grades,Each grade 12.5 |
Width of bag tube | ㎜ | 400 – 600(no grade) adjustment |
2 | Printing spew. | Printing length | ㎜ | 600 – 950 |
Printing width | ㎜ | 1100 |
Printing ink | | Ink |
Color category | | two-color overprint, four-color overprint |
Formed thickness | ㎜ | 6 |
3 | | Paper layer | layer | 3 – 4 |
4 | | Production efficiency | bag / min | 100 – 150 |
Name of Glue | | Metamorphic Starch, Methyl or CMC |
5 | Scroll spew. | Width of Scroll | ㎜ | 1220 |
Scroll diameter | ㎜ | 1220 |
Diameter of scroll core | ㎜ | 75 – 80 |
6 | Main motor | Main Motor | | Y180L – 4 TYPE, 22KW 1 unit |
Main motor, delta belt | | C-type, length: 2500mm quantity: 6 |
7 | Total power | KW | 30.9 |
Weight | T | 34 |
Outline dimensions
(Length x Width x Height) | M | 34 x 2.4 x 2.7 |
Working hour | 22 hours/day |
Design temperature | 0~40℃ |
Design humidity | MAX. 95% |
Number required | 1 unit |
Model name | HD4916 |
Performance
Speed | 120 bags/min(Depends on paper quality, number of ply and operators’ skill.) |
Bag length | 520~880mm |
Bag width | 420~600 mm |
Bottom width | 90~160mm |
Bottom open width | 200~440mm |
Distance between bottom centers | 420~780mm |
Valve sheet length | 100~300mm(adjustable) |
Valve sheet width | 120~240mm(adjustable) |
Main drive motor | 33kw |
Total weight | 25T |
Size of whole set | 22m×1.8m×1.8m ( L×W×H) |
Valve sheet reel diameter | Max.1,300mm |
Composing of the production line
HD4916 Bottomer Machine
Name | Quantity |
High speed feeder machine | 1 |
Perforation machine | 1 |
Tube opening unit | 1 |
Automatic gluing machine | 1 |
Scrip sealing machine | 1 |
Bag bottom turning unit | 1 |
Counting and delivery line | 1 |
Automatic delivering out unit | 1 |
Piling up platform | 1 |
Electric control unit | 1 |
Vacuum-pump | 1 |
