High Speed Paper Bag Manufacturing Machine Bottom Pasting For Karft Bag

High Speed Paper Bag Manufacturing Machine Bottom Pasting For Karft Bag

    • High Speed Paper Bag Manufacturing Machine Bottom Pasting For Karft Bag
    • High Speed Paper Bag Manufacturing Machine Bottom Pasting For Karft Bag
  • High Speed Paper Bag Manufacturing Machine Bottom Pasting For Karft Bag

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: Foshan,Tecon
    Certification: CE
    Model Number: ZT9804S+HD4916B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden box , 5 sets of 40-foot high cabinet
    Delivery Time: 3-5months
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets per year
    Contact Now
    Detailed Product Description
    Tuber Type: ZT9804S Manufacturer: Tecon, China
    Working Hour: 16hours ~ 22hours Per Day Air Consumption: 1100l/min
    Servo System: Available Bottomer Type: HD4916B
    Total Main Power: 80kw Bottom Strength: Available ,reinforced
    High Light:

    paper bags manufacturing machine

    ,

    bag making machinery

    High Speed Paper Bag Manufacturing Machine Bottom Pasting For Karft Bag ​


    Tuber model:ZT9804S
    Bottomer model:HD4916B

    Our advantage

    1.   Main parts from Germany/Japan,Like bearing adopt NSK brand.
    2.   Automatic & High speed;
    3.   Multi-functions
    4.   Different types for cement, chemicals, foods, tea, etc.
    5.   Bottom pasting with strength sheet,increase the strength of the paper bag.

    Technical parameters of our production line:
    ZT9804S Tuber Machine


    Speed(tubes/min)

    80~120 (Depends on paper quality, number of ply and operators’ skill.)

    Tube length(mm)

    400~1400

    Tube width(mm)

    380~620

    Type of cutting

    Step cut&Flat cut

    Number of paper layers

    2~4  plus 1 PP or PE film(Please specify if you need paper bag with PP film)

    Printing width(mm)

    1300 (MAX)

    Paper reel width( mm)

    660~1260

    Paper reel diameter(mm)

    Max. 1, 300

    Main drive motor(kw)

    47

    Size of whole set( L×W×H)mm

    35.3*2.4*2.7

    Total weight(T)

    32.5


    HD4916B Bottomer

    Working speed(bags/min)

    110

    Bag width(mm)

    420~600

    Bag length(mm)

    520~880

    Bottom width(mm)

    90~160

    Distance between bottom centers(mm)

    420~780

    Valve sheet length(mm)

    100~300,adjustable

    Valve sheet width(mm)

    120~240,adjustable

    Main drive motor(kw)

    33

    Total weight(T)

    25


    ZT9804S Tuber Machine compose of following parts



    Name

    Quantity

    4-color printing machine

    1

    Mill roll stands

    5

    utomatic paper rectifier

    1

    Auxiliary paper driver

    1

    Perforation unit

    1

    Latitudinal gluing machine

    1

    Longitude gluing machine

    1

    Tubes forming unit

    1

    Driving tearing-off unit

    1

    Delivery and counting unit

    1

    Electric control system

    1 (Schneider)

    Air compressor

    1

    Servo system

    1


    HD4913 Bottomer machine compose of following parts



    Name

    Quantity

    High speed feeder machine

    1

    Perforation machine

    1

    Tube opening unit

    1

    Automatic gluing machine

    1

    Scrip sealing machine

    1

    Bag bottom turning unit

    1

    Counting and delivery line

    1

    Piling up platform

    1

    Electric control unit

    1

    Delivery and counting unit

    1

    Electric control system

    1 (Schneider, German)

    Vacuum-pump

    1 (Schneider, German)

    Bearing

    NSK,Japan



    After-sale service
    1.Provide training during and after the installatin and commissioning at the buyer site.
    2.One year warranty period from the acceptance at the buyer site.

    3.Provide life-long technical services and effective solutions.

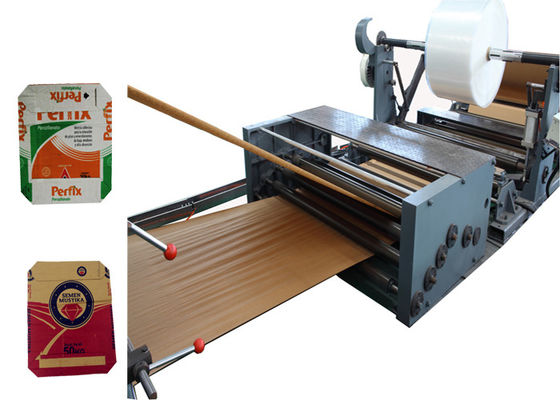

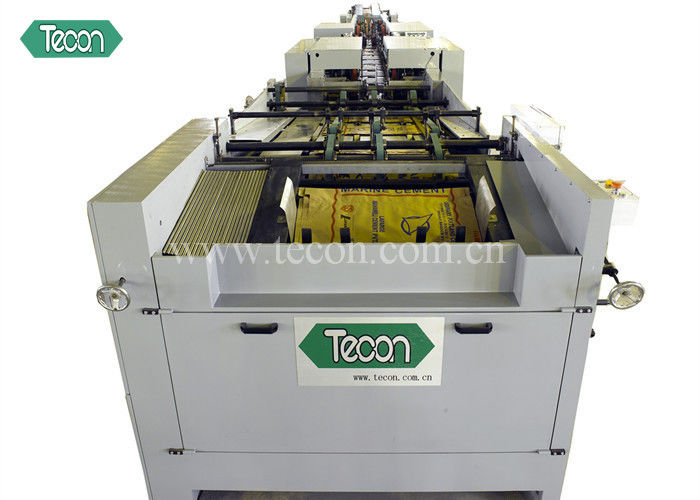

    Machine details

    High Speed Paper Bag Manufacturing Machine Bottom Pasting For Karft Bag

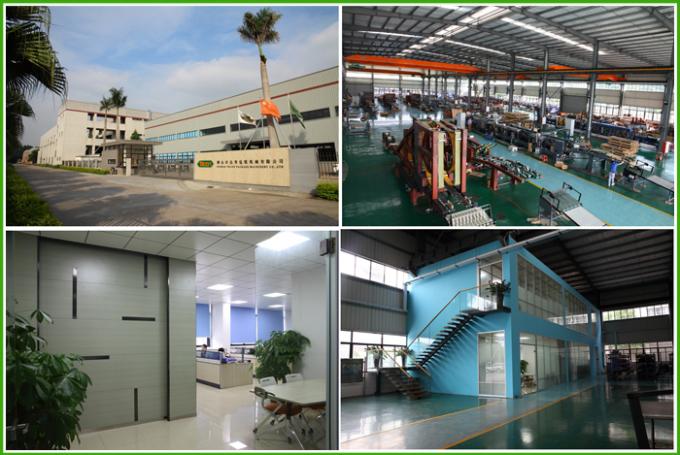

    Our factory overview

    High Speed Paper Bag Manufacturing Machine Bottom Pasting For Karft Bag
