Multi Wall Kraft Paper Bag Making Machine Full - Automatic With Step / Flat Cut

Multi Wall Kraft Paper Bag Making Machine Full - Automatic With Step / Flat Cut

    • Multi Wall Kraft Paper Bag Making Machine Full - Automatic With Step / Flat Cut
    • Multi Wall Kraft Paper Bag Making Machine Full - Automatic With Step / Flat Cut
    • Multi Wall Kraft Paper Bag Making Machine Full - Automatic With Step / Flat Cut
  • Multi Wall Kraft Paper Bag Making Machine Full - Automatic With Step / Flat Cut

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: Foshan,Tecon
    Certification: CE
    Model Number: ZT9804S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden box , 3*40-foot high cabinet
    Delivery Time: 3-5months
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets per year
    Contact Now
    Detailed Product Description
    Type: ZT9804S Manufacturer: Tecon, China
    Main Power: 47kw Total Weight: 33T
    Working Hour: 22hours Per Day Air Consumption: 1100l/min
    Servo System: Available Supply Ability: 16 Sets Per Year
    High Light:

    kraft paper bag machine

    ,

    tea bag making machine

    Multi Wall Kraft Paper Bag Making Machine Full - Automatic With Step / Flat Cut ​



    Features of our full-automatic paper bag production line:

    1.        Flat & glued bottom with filling valve;

    2.        Different types for cement, chemicals, foods, tea, etc.

    3.        4-color automatic printing

    4.        2~4 paper layers, with one extra PE/PP film available

    5.        35~50 million bags/year

    6.        Servo system control




    Technical parameters of our production line:

    ZT9804S Tuber Machine

    Technical parameter:




    Speed

    80~120 tubes/min(Depends on paper quality, number of ply and operators’ skill.)

    Tube length

    400~1400 mm

    Tube width

    380~620 mm

    Type of cutting

    Step cut&Flat cut

    Number of ply

    2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)

    Printing width

    1300 mm(MAX)

    Paper reel width

    660~1260 mm

    Paper reel diameter

    Max. 1, 300 mm

    Main drive motor

    47kw

    Size of whole set

    35.3m×2.4m×2.7m( L×W×H)

    Total weight

    32.5T




    Composing of the machine
    ZT9804S Tuber Machine



    Name

    Quantity

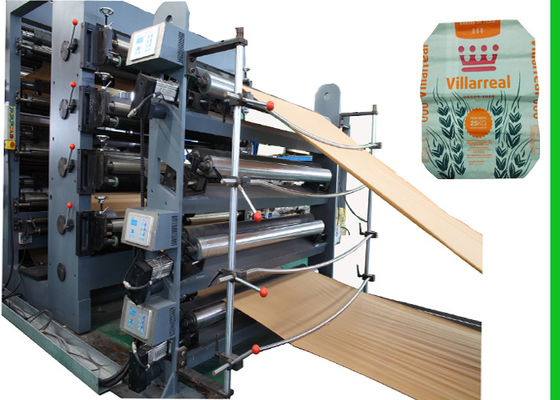

    4-color printing machine

    1

    utomatic paper rectifier

    1

    Auxiliary paper driver

    1

    Perforation unit

    1

    Latitudinal gluing machine

    1

    Longitude gluing machine

    1

    Tubes forming unit

    1

    Driving tearing-off unit

    1

    Delivery and counting unit

    1

    Electric control system

    1 (Schneider)

    Air compressor

    1

    Servo system

    1





    About us


    Foshan Tecon Package Machinery CO., LTD  is a high-tech equipment manufacturer. In 1996,We designed the first production line for Karft paper bag, and now we are top three listed in the world  in this industry and the only one in China able

     to design and manufacture the whole production line of  bottom pasted paper bag.



    Our machine details:

    Automatic kraft paper bag machine for cement,chemicals and food products.

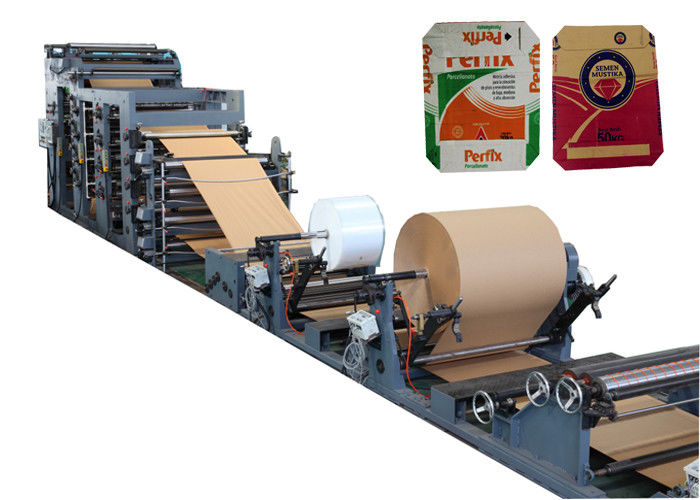

    Multi Wall Kraft Paper Bag Making Machine Full - Automatic With Step / Flat Cut

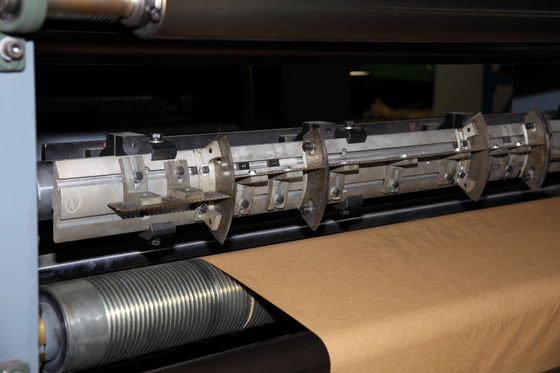

    Step cut :



    Multi Wall Kraft Paper Bag Making Machine Full - Automatic With Step / Flat Cut


    If you are interested in paper bag making machine, please do not hesitate to contact us.
