Energy Conservation Valve Paper Bag Making Machine 22.7 Tons

Energy Conservation Valve Paper Bag Making Machine 22.7 Tons

    • Energy Conservation Valve Paper Bag Making Machine 22.7 Tons
    • Energy Conservation Valve Paper Bag Making Machine 22.7 Tons
    • Energy Conservation Valve Paper Bag Making Machine 22.7 Tons
    • Energy Conservation Valve Paper Bag Making Machine 22.7 Tons
  • Energy Conservation Valve Paper Bag Making Machine 22.7 Tons

    Product Details:

    Place of Origin: China
    Brand Name: Tecon
    Certification: CE
    Model Number: HD4913B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Wooden Case
    Delivery Time: 5 Month After Receive The Payment
    Payment Terms: L/C, T/T
    Supply Ability: 16 Set Per Year
    Contact Now
    Detailed Product Description
    Ply: 2 ~ 4 Paper + 1 PP / PE Size Of Machine: 21.3m×2.3m×1.8m( L×W×H)
    Weight: 22.7 Tons Speed: 100-120 Pcs/ Min
    Main Drive Motor: 33 Kw Air Consumption: 1,100L/min
    Printing Style: Flexo Printing, 4 Colors Sealing & Cutting: Heat-Sealing Heat-Cutting
    Paper Thickness: Normal Specification Paper Color: User-defined
    High Light:

    paper bag manufacturing machines

    ,

    paper bag manufacturing machinery

    Energy Conservation Kraft Paper Bag Production Equipment for Cement





    Specifications :
    It is used for producing valve cement paper bags with printing. The main motor adopts frequency conversion motor to save more electricity and regulate speed more freely. The color code tracker with good performance makes the sealing and cutting length more accurate and the error smaller. It adopts advanced computer to adjust length more freely and accurately.It can make one printed bag and three unprinted bags one time, or four unprinted bags one time in allowed width.





    Features of our full-automatic paper bag production line:

    1.  Flat & glued bottom with filling valve
    2.  Different types for cement, chemicals, foods, tea, etc.
    3.  4-color automatic printing
    4.  2~4 paper layers, with one extra PE/PP film available
    5.  Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control
    6. system, Siemens electrical system
    7. 35~50 million bags/year
    8. Full technical service for installation, training and maintenance
    9. Full solution for factory construction and materials purchase.





    Perfect service:




        1. Technical consultation.
        2. Detailed design of factory or workshop.
        3. Project evaluation.
        4. Training engineers and workers.
        5. Supplying spare part for long time.
        6. Installing and testing the whole production line.
        7. Good after-sale and in-sale servcie.





    Technical parameters of our production line:



    HD4913B Bottomer Machine

    Operating condition

    Working hour

    22 hours/day

    Design temperature

    0~40℃

    Design humidity

    MAX. 95%

    Number required

    1 unit

    Model name

    HD4913B





    Performance

    Speed

    80~130 bags/min(Depends on paper quality, number of ply and

    operators’ skill.)

    Bag length

    520~880mm

    Bag width

    420~600 mm

    Bottom width

    90~130mm

    Bottom open width

    200~380mm

    Distance between bottom centers

    420~780mm

    Valve sheet length

    100~250mm

    Valve sheet width

    120~170mm

    Main drive motor

    33kw

    Total weight

    22.7T

    Size of whole set

    21.3m×2.3.m×1.8m ( L×W×H)

    Valve sheet reel diameter

    Max.1,300mm





    Composing of the production line

    HD4913B Bottomer Machine



    Name

    Quantity

    High speed feeder machine

    1

    Perforation machine

    1

    Tube opening unit

    1

    Automatic gluing machine

    1

    Scrip sealing machine

    1

    Bag bottom turning unit

    1

    Counting and delivery line

    1

    Automatic delivering out unit

    1

    Piling up platform

    1

    Electric control unit

    1 (Schneider, German)

    Vacuum-pump

    1 (Schneider, German)

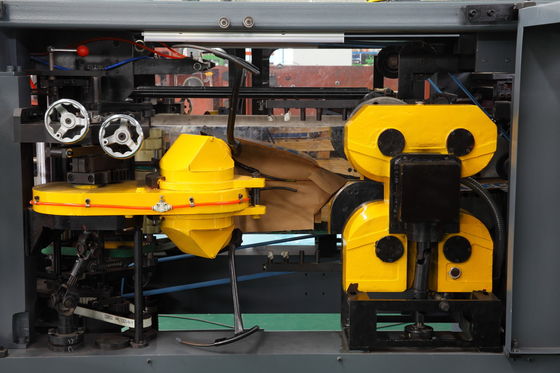

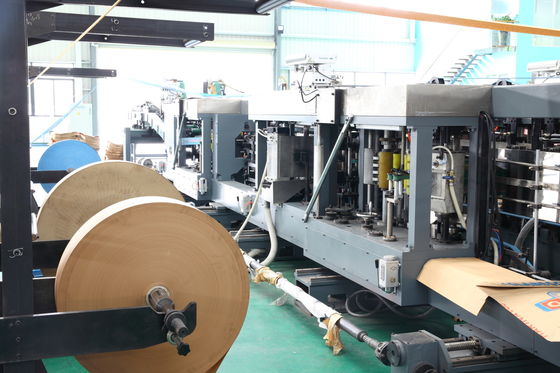

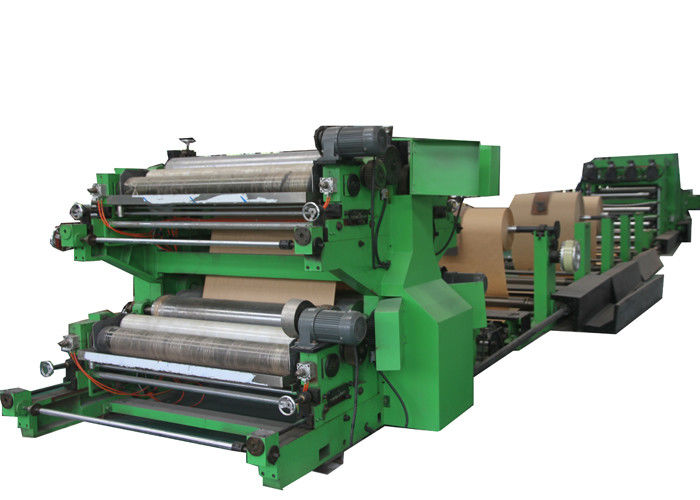

    Part of Our Machine:





    Energy Conservation Valve Paper Bag Making Machine 22.7 Tons

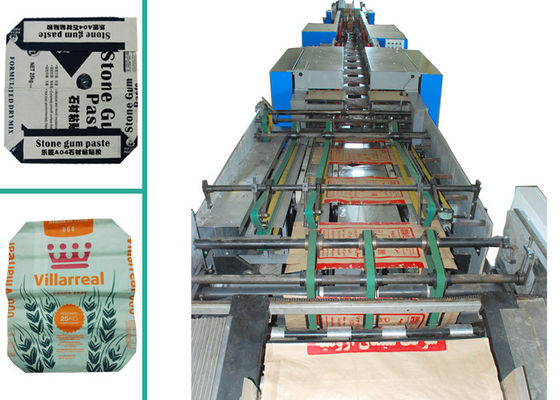

    Bag Sample:
