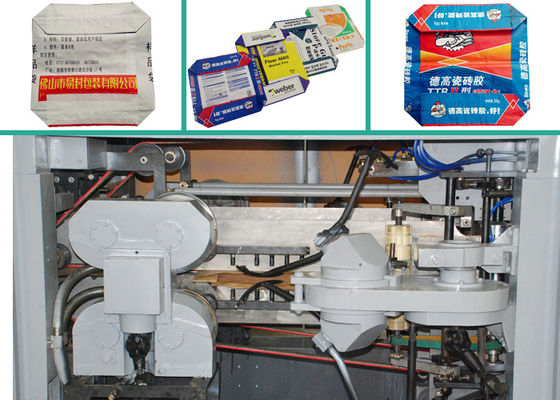

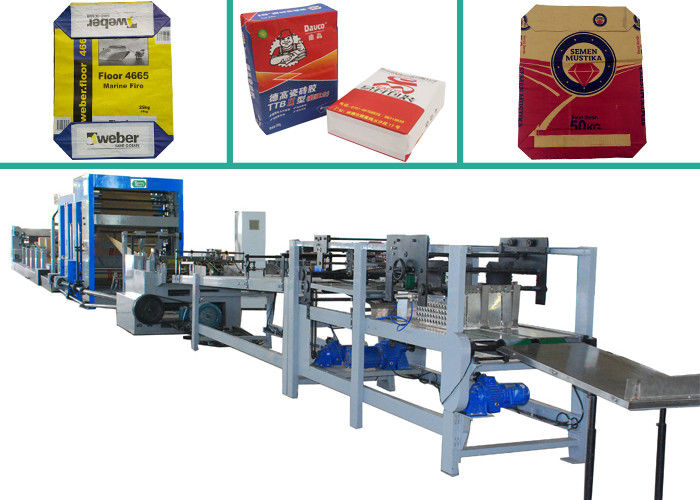

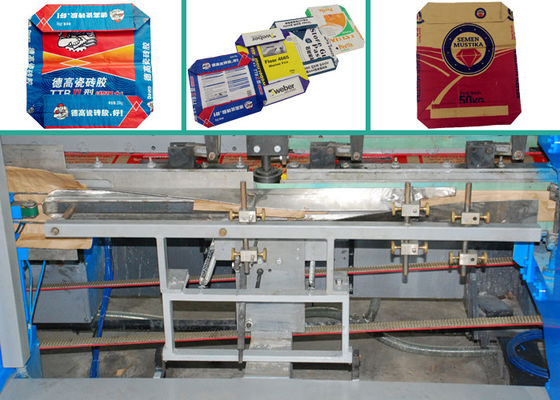

Full Automatic Bottomer Machine for Metamorphic Starch or Portland Cement Bag Making Line
Product Details:
| Place of Origin: |
China |
| Brand Name: |
Tecon |
| Certification: |
CE |
| Model Number: |
ZT9802 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1pcs |
| Price: |
negotiation |
| Packaging Details: |
Wooden case |
| Delivery Time: |
3 months after received your payment |
| Payment Terms: |
L/C, T/T |
| Supply Ability: |
16pcs per year |
Contact Now
Detailed Product Description
| Tube Length: |
Cutoff Length + 40 |
Printing: |
2-colour |
| Tube Width: |
400 – 600(no Grade) Adjustment |
Material: |
Kraft Paper |
| Liner: |
PP/PE |
Total Weight: |
30T |
| High Light: |
bottom sealing bag making machine, paper bag making machine |
36 Patents Core Technique Bottomer Machine with Automatic Metamorphic Starch, Methyl or CMC Glue for Portland Cement Bag
- Features of our full-automatic paper bag production line
- Flat & glued bottom with filling valve;
- Different types for cement, chemicals, foods, tea, etc.
- 2-color automatic printing
- 2~4 paper layers, with one extra PE/PP film available
- 35~50 million bags/year
- Full technical service for installation, training and maintenance
- Full solution for factory construction and materials purchase.
- Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
- Technical parameters of ZT9802
|
Item No.
|
Name
|
Unit
|
Specification Value
|
|
1
|
Bag Spew.
|
Length of bag tube
|
㎜
|
Cutoff length + 40
|
|
Cutoff length
|
㎜
|
700 -1050(±4)29 Grades,Each grade 12.5
|
|
Width of bag tube
|
㎜
|
400 – 600(no grade) adjustment
|
|
2
|
Printing spew.
|
Printing length
|
㎜
|
600 – 950
|
|
Printing width
|
㎜
|
1100
|
|
Printing ink
|
|
Ink
|
|
Color category
|
|
two-color overprint, four-color overprint
|
|
Formed thickness
|
㎜
|
6
|
|
3
|
|
Paper layer
|
layer
|
3 – 4
|
|
4
|
|
Production efficiency
|
bag / min
|
100 – 150
|
|
Name of Glue
|
|
Metamorphic Starch, Methyl or CMC
|
|
5
|
Scroll spew.
|
Width of Scroll
|
㎜
|
1220
|
|
Scroll diameter
|
㎜
|
1220
|
|
Diameter of scroll core
|
㎜
|
75 – 80
|
|
6
|
Main motor
|
Main Motor
|
|
Y180L – 4 TYPE, 22KW 1 unit
|
|
Main motor, delta belt
|
|
C-type, length: 2500mm quantity: 6
|
|
7
|
Total power
|
KW
|
30.9
|
|
Weight
|
T
|
34
|
|
Outline dimensions
(Length x Width x Height)
|
M
|
34 x 2.4 x 2.7
|
