High Output Heat-Sealing Glued Bottom Automatic Paper Bag Making Machine
Features of our full-automatic paper bag production line:
1. Flat & glued bottom with filling valve;
2. Different types for cement, chemicals, foods, tea, etc.
3. 4-color automatic printing
4. 2~4 paper layers, with one extra PE/PP film available
5. 35~50 million bags/year
6. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
7. Full technical service for installation, training and maintenance
8. Full solution for factory construction and materials purchase.
Technical parameters of our production line:
ZT9804 Tuber Machine
Operating condition
|
Working hour
|
22 hours/day
|
|
Design temperature
|
0~40℃
|
|
Design humidity
|
MAX. 95%
|
|
Number required
|
1 unit
|
|
Model name
|
ZT9804
|
Performance
|
Speed
|
130~150 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
|
|
Tube length
|
670~1035 mm
|
|
Tube width
|
420~600 mm
|
|
Space between tape steps
|
20 mm
|
|
Tube Cut Length
|
670~1035mm
|
|
Number of ply
|
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
|
|
Diameter of print roller
|
ø144～ø314 mm
|
|
Printing width
|
1300 mm(MAX)
|
|
Paper reel width
|
860~1260 mm
|
|
Paper reel diameter
|
Max. 1, 300 mm
|
|
Air consumption
|
1,100L/min
|
|
Main drive motor
|
30kw
|
|
Size of whole set
|
34.3m×2.4m×2.7m( L×W×H)
|
|
Total weight
|
30 T
|

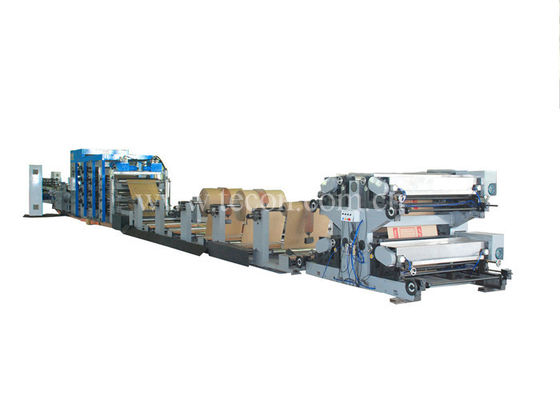

Composing of the production line
ZT9804 Tuber Machine
|
Name
|
Quantity
|
|

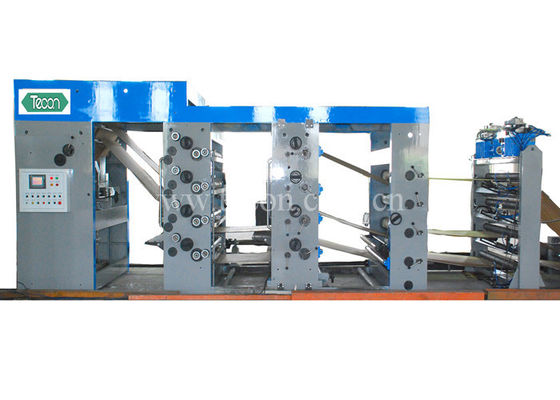

4-color printing machine
|
1
|
|
Paper reel stands
|
1
|
|
Paper web guider
|
1
|
|
Automatic paper rectifier
|
1
|
|
Auxiliary paper driver
|
1
|
|

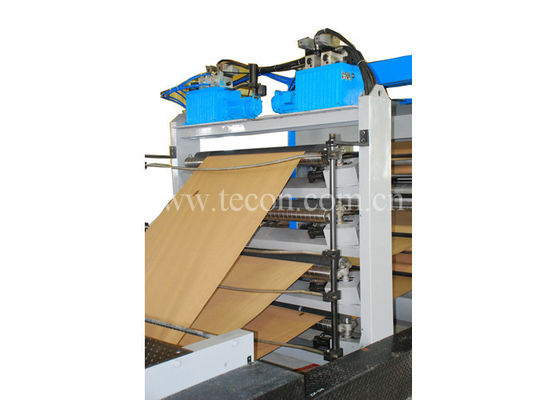

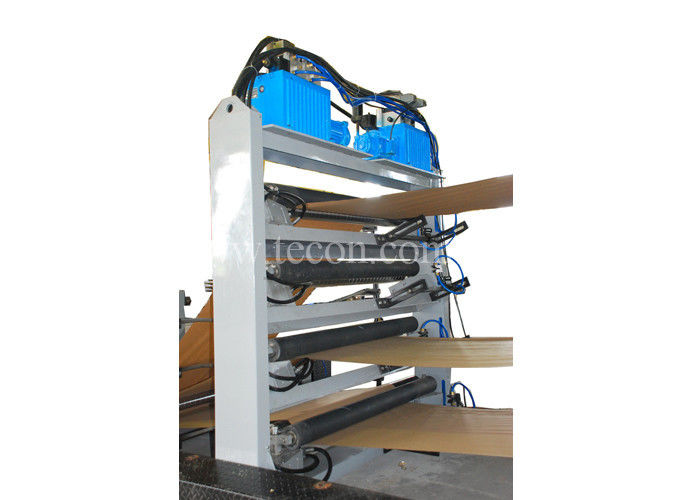

Perforation machine
|
1
|
|
Latitudinal gluing machine
|
1
|
|
Longitude gluing machine
|
1
|
|
Tubes forming unit
|
1
|
|
Driving tearing-off
|
1
|
|
Delivery & counting line
|
1
|
|
Electric control system
|
1 (Schneider, German)
|
|
Air compressor
|
1
|
After-sales:
We offer the Preventative Maintenance and After Sales Service. For we Strongly feels about the importance of supporting our customers and the product solutions we provide. Also we offer one year guarantee period, paid service for whole life.

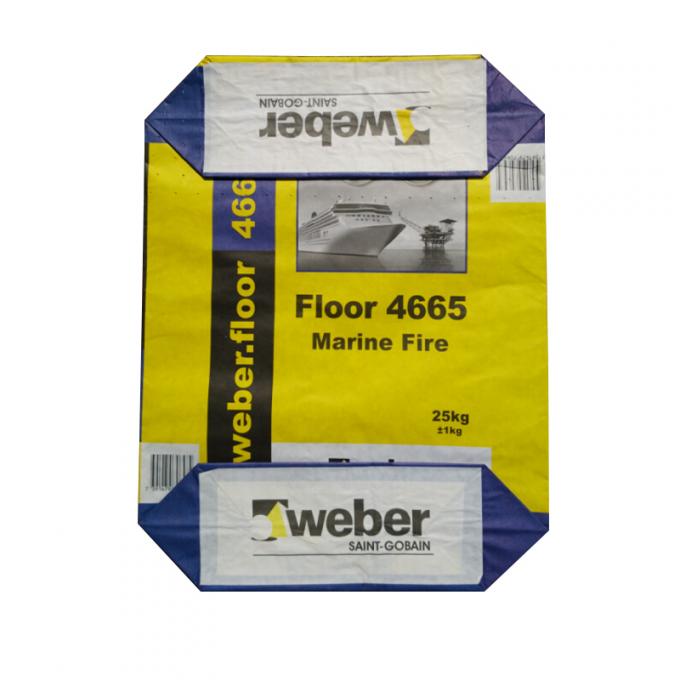

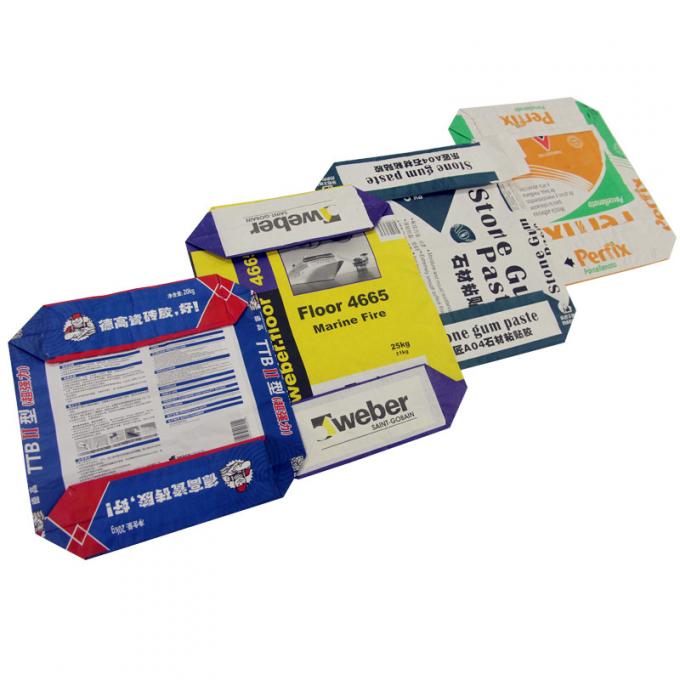

Sample Bags:
