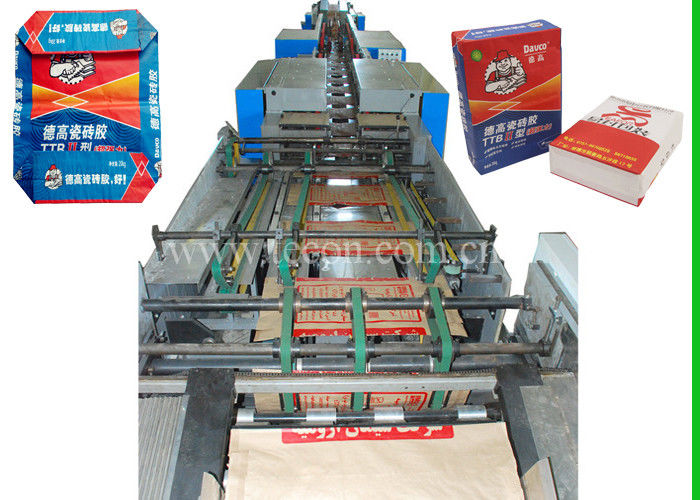

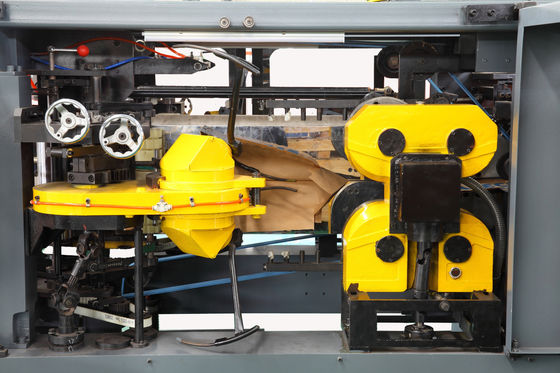

High Efficiency Multi-function Paper Packing Machine with Servo System
Brief Introduction:

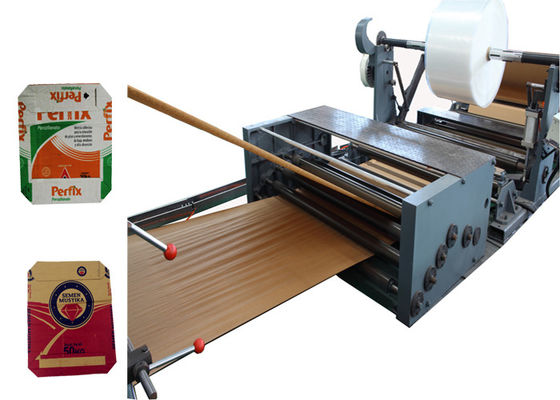

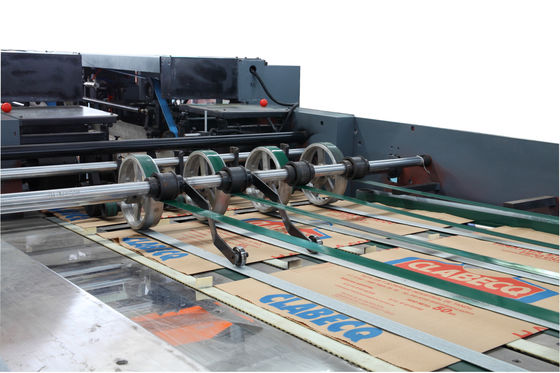

Our paper bag production line consists two parts, one is paper tube making machine, another is bottom pasting machine. This production line can make 4 color printing, bottom
valved paper bags. This kind of bags can be used for packing cement, mortar, chemicals materials and other granule or powder materials. Bags can be 2~4 layers kraft paper
or clupak paper and one layer of PE material.
Features of our full-automatic paper bag production line:
1. High Speed Rotary Feeder
2. Tube Alignment
3. Deflector for Irregular Tubes
4. Bottom Creasing Line Station
5. Air Vent Perforation
6. Bottom Opening Unit
7. Valve Station with Winding Station
8. Pasting Internal Strengthen Sheet Unit
9. Bottom Closing Stations
10. Pasting External Strengthen Sheet Unit
Bottomer Machine’s Process Description
Step1 High-speed Rotary Vacuum Feeding
Step2 Puncturing Vent Hole and Creasing
Step3 Tubes Delivery
Step4 Bottom-Opening
Step5 Valve Sheet Pasting
Step6 Automatic Gluing
Step7 Bottom-pasting and Bag Forming
Step8 Bottom Revising
Step9 Bags Counting and Palletizing
Step10 Programmable Logic Controller(PLC)
HD4913B Performance
|
Speed
|
80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)
|
|
Bag length
|
520~880mm
|
|
Bag width
|
420~600 mm
|
|
Bottom width
|
90~130mm
|
|
Bottom open width
|
200~380mm
|
|
Distance between bottom centers
|
420~780mm
|
|
Valve sheet length
|
100~250mm
|
|
Valve sheet width
|
120~170mm
|
|
Main drive motor
|
33kw
|
|
Total weight
|
22.7T
|
|
Size of whole set
|
21.3m×2.3.m×1.8m ( L×W×H)
|
|
Valve sheet reel diameter
|
Max.1,300mm
|
Composing of the production line
HD4913B Bottomer Machine
|
Name
|
Quantity
|
|
High speed feeder machine
|
1
|
|
Perforation machine
|
1
|
|
Tube opening unit
|
1
|
|
Automatic gluing machine
|
1
|
|
Scrip sealing machine
|
1
|
|
Bag bottom turning unit
|
1
|
|
Counting and delivery line
|
1
|
|
Automatic delivering out unit
|
1
|
|
Piling up platform
|
1
|
|
Electric control unit
|
1 (Schneider, German)
|
|
Vacuum-pump
|
1 (Schneider, German)
|
After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we Strongly feels about the importance of supporting our customers and the product solutions we
provide. Also we offer one year guarantee period, paid service for whole life.
Sample Bag
