Block Bottom Type Sack Making Machine For Building Material Packing
Brief introduction

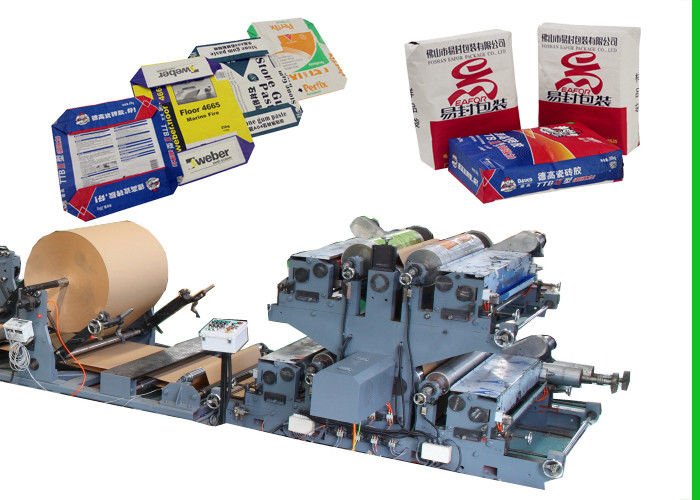

Our paper bag production line consists two parts, one is paper tube making machine,

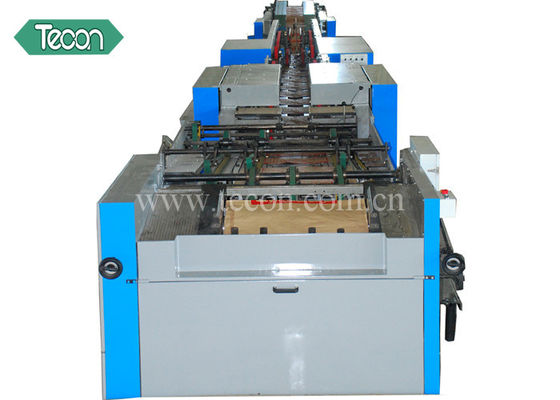

the other is bottom pasting machine.
This production line can make 2-4 color printing, bottom valved paper bags.
This kind of bags can be used for packing cement, mortar, chemicals materials and
other granule or powder materials. Bags can be 2~4 layers kraft paper or clupak paper
and one layer of PE material.
Technical parameters of Valve paper bag production line:
ZT9804 Tuber
1. Equipment Model (ZT9804)
2. Tube Length: 670~1035mm
3. Tube Width: 420~600mm
4. Tube Cut Length: 670~1035mm
5. Printing width: 1300 mmMAX
8. Diameter of paper roll: PDø144~314 mmMAX
9. Width of paper roll: 860~1260 mm
10. Tube Speed(S): 130~150 pieces /minMAX
12. Main Drive Motor power: 30KW
13. Gross weight 30T

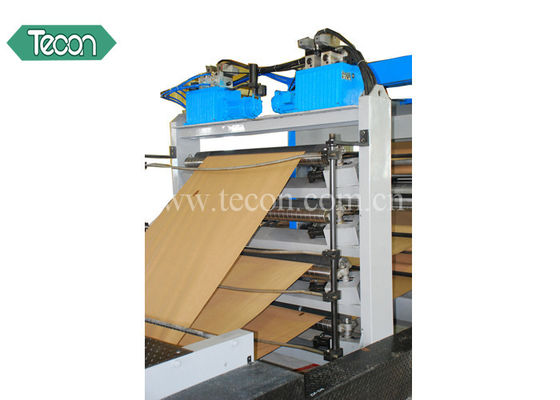

ZT9804 Tuber Machine compose of following parts
| 4-color printing machine |
1 |
| Mill roll stands |
5 |
| Paper web guide |
1 |
| Automatic paper unwinding |
1 |
| Auxiliary web guide |
1 |
| Perforation unit |
1 |
| Cross stepped gluing unit |
1 |
| Longitude seam gluing unit |
1 |
| Tubes forming unit |
1 |
| Driving tearing-off unit |
1 |
| Delivery and counting unit |
1 |
| Electrical system |
1 |
| Bearing |
NSK Japan |
| Compressor |
1 |
Manufacture process
Tuber
After-sale service
1. Provide training during and after the commissioning at the buyer site.
2. One year warranty period from the acceptance at the buyer site.
3. Provide life long technical services and effective solutions.
About us
Foshan Tecon is a high-tech equipment manufacturer. In 1996,We designed the first production line for sack making, and now we are top three listed in the world in this industry and the only one
in China able to design and manufacture the whole production line of bottom pasted
paper bag.
