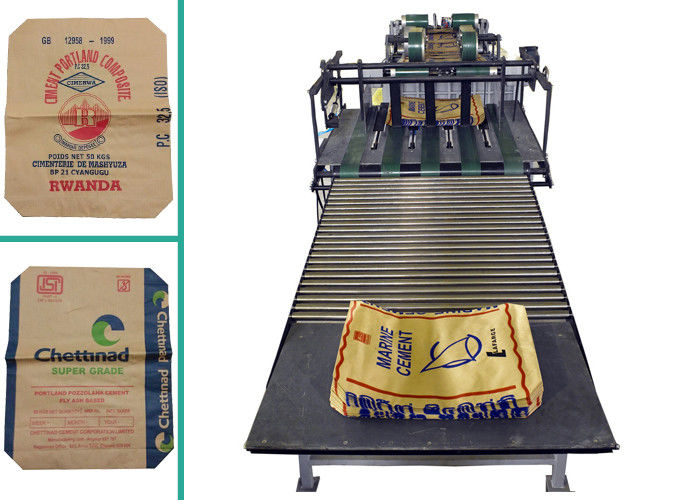

High Speed Concrete Paper Bags Making Machinery / Paper Tube Manufacturing Machine

High Speed Concrete Paper Bags Making Machinery / Paper Tube Manufacturing Machine

High Speed Concrete Paper Bags Making Machinery / Paper Tube Manufacturing Machine

Product Details:

Place of Origin: China
Brand Name: Tecon
Certification: CE
Model Number: HD4916BD

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Ply Wood case
Delivery Time: 3-5 months after received your payment
Payment Terms: T/T or L/C
Supply Ability: 16pcs per year
Contact Now
Detailed Product Description
Servo System: Can Be Added If You Want Type Of Cutting: Step Cut And Flat Cut
Printing Colors: 3 Strengthen Sheet Unit: Yes
Number Of Ply: 2~4paper+1 PP/PE Strengthen Sheet Length * Width: 300~600, 80~160
High Light:

paper tube making machines

,

paper tube manufacturing machine

Servosystem Control Concrete Paper Tubes Making Machine With Bottom Strengthen Sheet





ZT9804S Tuber Machine With Servo System Performance







Type

ZT9804S

Speed

80-120BAGS/MIN

Tube Width

380~620mm

Tube length

400-1400mm

Specification gear

51~80 teeth(M=4)

Number of ply

2~4paper+ 1 PP/PE

Diameter of print roller

Ø196~ø312 mm

Printing width

1300 mm(MAX)

Paper reel diameter

Max. 1, 300 mm

Paper reel width

660--1260mm







HD4916BD Performance





Speed

MAX 120 bags/min     (vary with valve)

Tube Width

380~620 mm

Bottom Width

80~175 mm

Valve Sheet Length Width

(100-300)﹡(120-340)adjustable

Bag Length

390~1020 mm

Bottom Center Distance

290~860 mm





Composing of the production line



ZT9804S Tuber Machine including



4-color printing machine

Paper reel stands

Paper web guider

Automatic paper rectifier

Auxiliary paper driver

Perforation machine

Latitudinal gluing machine

Longitude gluing machine

Tubes forming unit

Driving tearing-off

Delivery & counting line

Electric control system

Air compressor

Servo system





HD4916BD Bottomer Machine including



High speed feeder

Perforation of the exhaust outlet unit

Opening the sacks unit

Stick the sealing paper strip auto the bottom opening unit

Bottom patch units

Turning of sack bottom unit

Pasting strength sheet unit

Counting and delivery

Packing and delivering out unit

Platform for storing

Electrical system   (Schinerder)

Vacuum-pump     (Rietschele)

Bearing   (Janpan NSK)




Our machine Details:




Packing Details:


High Speed Concrete Paper Bags Making Machinery / Paper Tube Manufacturing Machine

Features of our full-automatic paper bag production line:


The unit is for strengthening the bottom.Bottom strength sheet can make the bottom much stronger,

and it's also easier for bottom printing.
