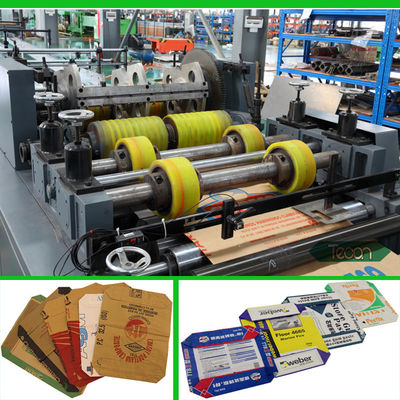

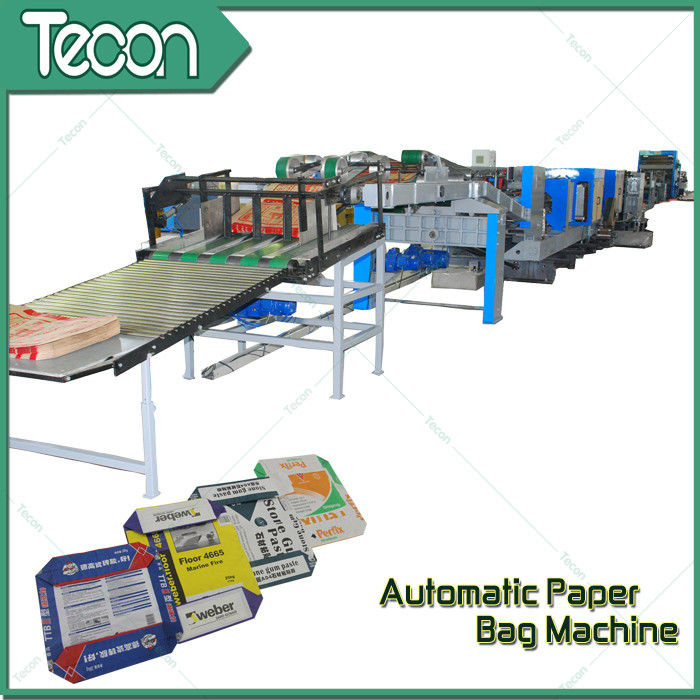

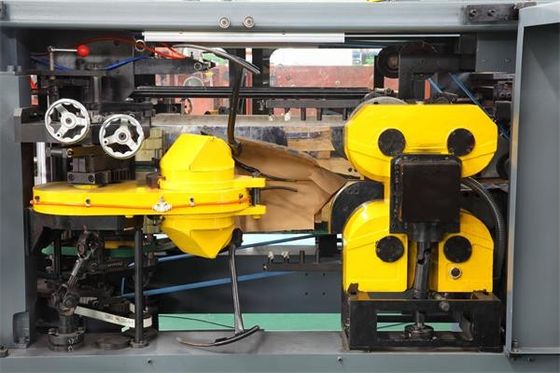

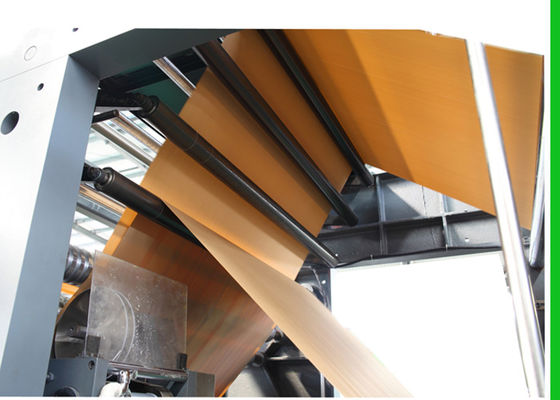

33KW Paper Bag Tuber and Bottomer Machinery With 4 Color Printer
Specification of compact line
Model: ZT9804S & HD4913
Technical parameters of our production line:
ZT9804S Tuber Machine
Speed |
80~120 tubes/min(Depends on paper quality, number of ply and operators’ skill.) |
| Tube length |
400~1400 mm |
| Tube width |
380~620 mm |
| Type of cutting |
Step cut&Flat cut |
| Number of ply |
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film) |
| Printing width |
1300 mm(MAX) |
| Paper reel width |
660~1260 mm |
| Paper reel diameter |
Max. 1, 300 mm |
| Main drive motor |
47kw |
| Size of whole set |
35.3m×2.4m×2.7m( L×W×H) |
| Total weight |
32.5T |
HD4913 Bottomer
| Working speed |
80~130 bags/min |
| Bag width |
420~600 mm |
| Bag length |
520~880mm |
| Bottom width |
90~130mm |
| Distance between bottom centers |
420~780mm |
| Valve sheet length |
100~250mm |
| Valve sheet width |
120~170mm |
| Main drive motor |
33kw |
| Total weight |
22.7T |
ZT9804S Tuber Machine compose of following parts
| Name |
Quantity |
| 4-color printing machine |
1 |
| |
|
| utomatic paper rectifier |
1 |
| Auxiliary paper driver |
1 |
| Perforation unit |
1 |
| Latitudinal gluing machine |
1 |
| Longitude gluing machine |
1 |
| Tubes forming unit |
1 |
| Driving tearing-off unit |
1 |
| Delivery and counting unit |
1 |
| Electric control system |
1 (Schneider) |
| Air compressor |
1 |
| Servo system |
1 |
HD4913 Bottomer machine compose of following parts
| Name |
Quantity |
| High speed feeder machine |
1 |
| Perforation machine |
1 |
| Tube opening unit |
1 |
| Automatic gluing machine |
1 |
| Scrip sealing machine |
1 |
| Bag bottom turning unit |
1 |
| Counting and delivery line |
1 |
| Piling up platform |
1 |
| Electric control unit |
1 |
| Delivery and counting unit |
1 |
| Electric control system |
1 (Schneider, German) |
| Vacuum-pump |
1 (Schneider, German) |
| |
|
After-sale service
1. Provide training during and after the commissioning at the buyer site.
2. One year warranty period from the acceptance at the buyer site.
3. Provide life long technical services and effective solutions.
Sample bags
