Home ProductsAutomatic Paper Bag Making Machine

Automatic Manage ZT9804 Tube Making Machine HD4913 Bottom Pasting Machine

Automatic Manage ZT9804 Tube Making Machine HD4913 Bottom Pasting Machine

Automatic Manage ZT9804 Tube Making Machine HD4913 Bottom Pasting Machine

Product Details:

Place of Origin: China
Brand Name: Tecon
Certification: CE
Model Number: ZT9804 & HD4913

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set Machine
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 3-5 months after received your payment
Payment Terms: T/T or L/C
Supply Ability: 16Pcs Per Year
Contact Now
Detailed Product Description
Drive System: Bevel Gear Management: Automatic Management
Ply Of Paper Bag: 5 Plies Print Tech: Online 4 Colors Printing
Main Drive Motor: 33kw Machine Body: Casting Body
Width: 3 Meter Weight: 30 Tons
High Light:

automatic paper bag manufacturing machine

,

automatic paper bag machine

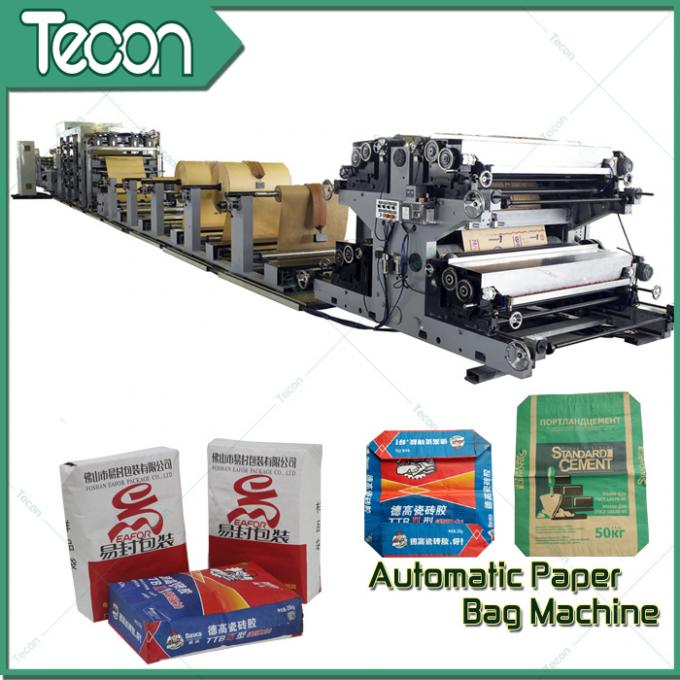

Tube Machine of Kraft Paper Bag Production Line With 5 Paper Reel Racks





Bags can be made of 2~4 layers kraft paper or paper with one layer of PE/PP film.2~4 colors printing available in Tuber line.
The bags opening or valve in one corner through which the sack is filled. The valve is made with an inner flap which functions as a self-closing check valve after filling. It is available with a plain valve or with an extended inner sleeve of paper or film.
Different models can produce different kinds of bags,like standard cement bags,chemical/cement bags with bottom strengthen sheet,tea bag with PP Liner to enhanced moisture protection.

Machine Technical Parameters:

Model ZT9804+HD4913
Tuber Speed: 130~150 tubes/min
Bottomer speed: 80~130 bags/min
Colour printing: 2 colors available (ZT9804 is 4-color printing)
Diameter of print roller: ø144~ø314 mm
Printing width: 1300 mm(MAX)
Number of plies: 2~4 papers and 1 PP/PE liner obtional.
Paper reel width: 860~1260 mm
Paper reel diameter: Max. 1, 300 mm
Paper Bag Width: 420~600 mm
Paper bag Bottom width: 90~130mm
Paper bag Length: 520~880mm
Distance between bottom centers 420~780mm
Size of tuber: 34.3m*2.4m*2.7m( L*W*H)
Size of bottomer: 21.3m*2.3.m*1.8m ( L*W*H)
Air consumption: 1,100L/min
Power consumption: 63kw(ZT9802S 30KW,HD4913B 33KW)
Total weight 52.7T (30+22.7)
Application Mainly for making cement bags


Product show:

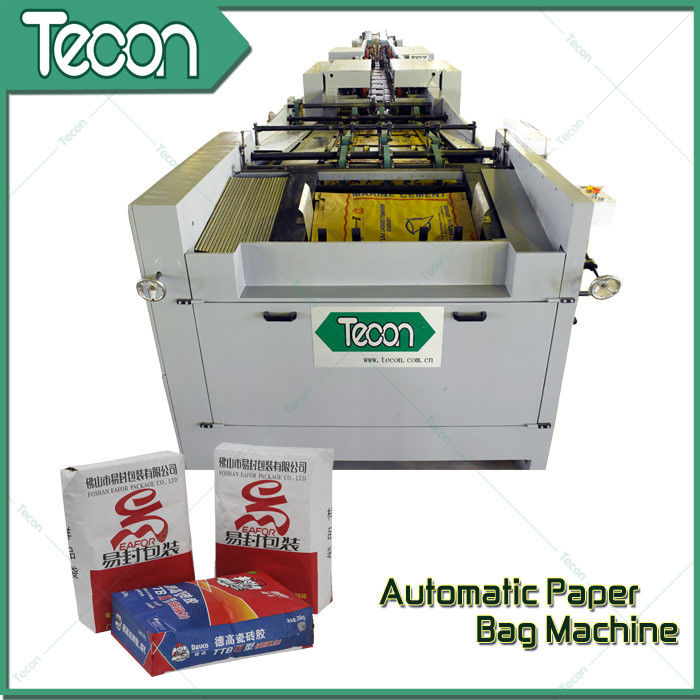

Automatic Manage ZT9804 Tube Making Machine HD4913 Bottom Pasting Machine
