Place of Origin: | China |
Brand Name: | Tecon |
Certification: | CE |
Model Number: | HD4916 |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | negotiation |
Packaging Details: | Ply Wood case |
Delivery Time: | 3-5 months after received your payment |
Payment Terms: | T/T or L/C |
Supply Ability: | 16pcs per year |
Bearing: | NSK, Japan | Other: | Servo System Control Or PLC Control Available; |
---|---|---|---|
Bag Type: | For Cement, Chemicals, Foods, Tea, Etc. | Printing Color: | 4 Colors |
Main Drive Motor: | 33kw | Warrantly: | 12 Month |
Certification: | CE | Machine Type: | High Precision |
Motor: | Electric Driven | Working Hour: | 22 Hours/day |
Air Consumption: | 1,100L/min | Total Weight: | 25T |
High Light: | paper bag machinery,paper bag machine |
HD4916 Bottomer Machine Operating condition
Valve sheet length |
100~300mm(adjustable) |
Valve sheet width |
120~240mm(adjustable) |
Main drive motor |
33kw |
Total weight |
25T |
Size of whole set |
22m×1.8m×1.8m ( L×W×H) |
Valve sheet reel diameter |
Max.1,300mm |
Composing of the production line HD4916 Bottomer Machine
Name |
Quantity |
High speed feeder machine |
1 |
Perforation machine |
1 |
Tube opening unit |
1 |
Automatic gluing machine |
1 |
Scrip sealing machine |
1 |
Bag bottom turning unit |
1 |
Counting and delivery line |
1 |
Automatic delivering out unit |
1 |
Piling up platform |
1 |
Electric control unit |
1 |
Vacuum-pump |
1 |
Usage and Characteristics

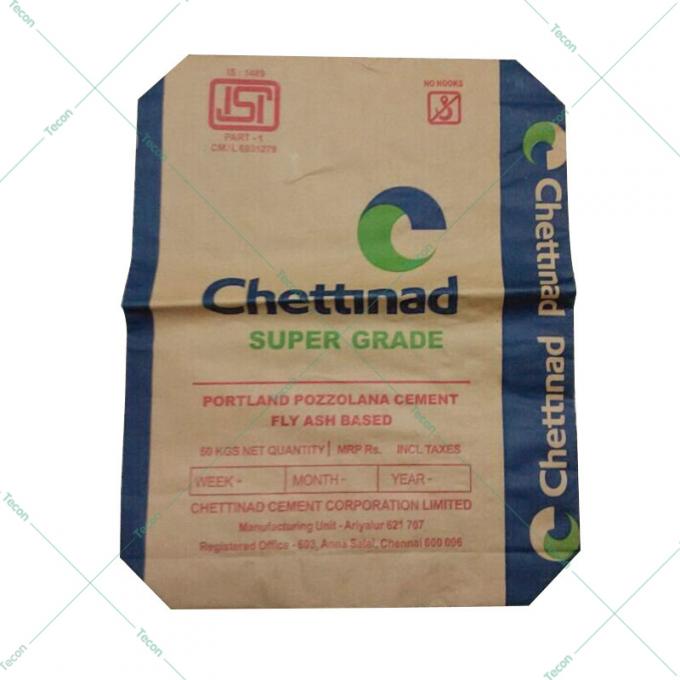

It is used for producing valve cement paper bags with printing. The main motor adopts frequency conversion motor to save more electricity and regulate speed more freely. The color code tracker with good performance makes the sealing and cutting length more accurate and the error smaller. It adopts advanced computer to adjust length more freely and accurately.It can make one printed bag and three unprinted bags one time, or four unprinted bags one time in allowed width.

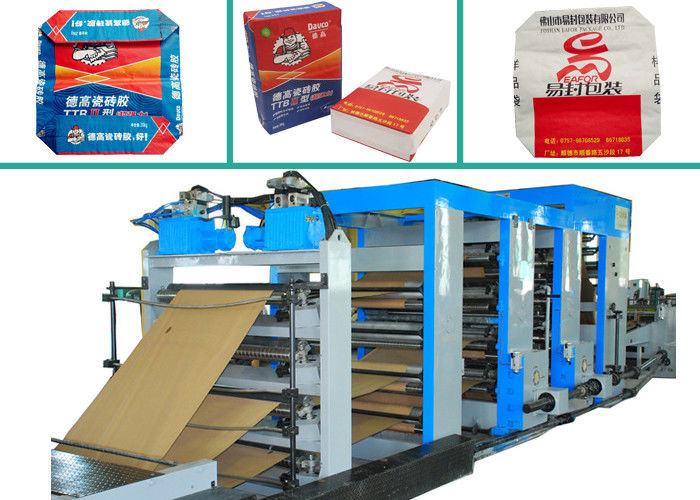

The Detail of Bottomer Machine
Automatic valve paper bag machine for cement,chemicals and food
Welcome to contact us or visit our factory. We are ready here.
