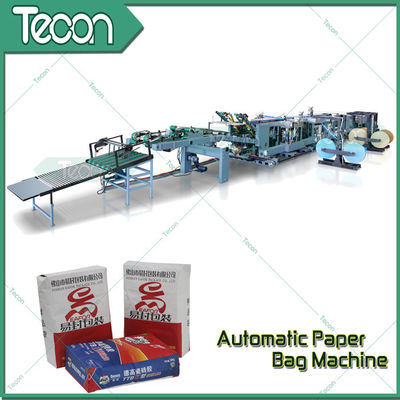

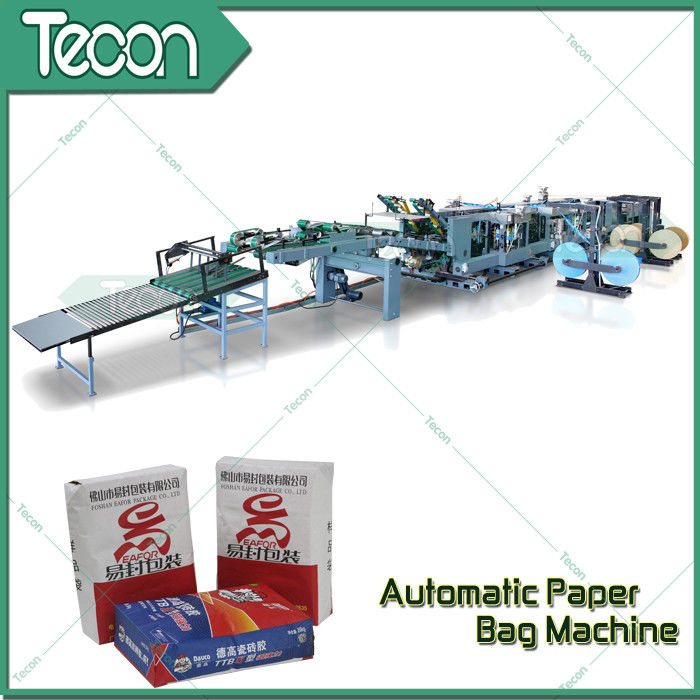

High speed paper bag bottomer machine with inner and outer strength sheet
Paper Bag details:
Bag Width: 420~600 mm
Bottom width: 90~160mm
Length: 520~880mm
Number of plies: 2~4 papers and 1 PP/PE liner obtional.
Base paper Bleached or unbleached paper is available, with grammages ranging from 70g sm to 120 gsm. Polycoated plies or HDPE films can be incorporated if required for enhanced moisture protection.
Technical parameters of PE film laminated paper bags forming machine:
Basic model: HD4916BD
| Bottomer speed: |
80 bags/min(Depends on paper quality, number of ply and operators’ skill.) |
| Diameter of print roller: |
ø144～ø314 mm |
| Printing width: |
1300 mm(MAX) |
| Paper reel width: |
860~1260 mm |
| Paper reel diameter: |
Max. 1, 300 mm |
| Size of bottomer: |
23.5m*2.3.m*1.8m ( L*W*H) |
| Air consumption: |
1,100L/min |
| Power consumption: |
35kw |
HD4916BD Bottomer machine compose of following parts
| Name |
Quantity |
| High speed feeder machine |
1 |
| Perforation machine |
1 |
| Tube opening unit |
1 |
| Automatic gluing machine |
1 |
| Scrip sealing machine |
1 |
| Bag bottom turning unit |
1 |
| Counting and delivery line |
1 |
| Automatic delivering out unit |
1 |
| Piling up platform |
1 |
| Electric control unit |
1 |
| Vacuum-pump |
1 |
Service
(1) Pre-sale service
We are so glad to welcome the customer to visit our factory and show our machine’s working. And we will take you to our domestic customers’ factory who have bought our machine for watching the machine daily operation. We will haveing meetings with the customers for discussion on the machine, price, service or any part concerns. At the same time, we make meeting records and finally close the deal.
(2) Medium-sales service
1. After signing the contract, we will provide the production planning to the customer. In addition to this, we will follow up the production progress and report to the customer production situation regularly.
2. The part of Inspection. When the machine production finished, we will invite the buyer coming to our factory for watching the machine operation. For example, the buyers have a requestment for producing 1 or 2 various sizes paper bags. We will show the machine making paper bags the same as samples provided by buyers. We will arrange the shipment if the customers satisfied with the machine.
3.Transportation. Wooden boxes packaging in container, the whole set of machine needs 5x40GP. About the freight forwarder, we can find for you or use your recommended. We will provide a few good service freight forwarders to let you choose.
Tecon Family
The company has over 100 employees for the department of production, research and development, service, market. We provide Automatic and Intellectualized Valve Bag Making Machine with higher production efficiency, more stable quality and a comprehensive solution to its operating system. Our company constantly work on innovating to keep in step with the times. We have developed a series of high-tech products, such as Valve Paper Bag Making Machine with servo system, internal and external strengthen, internal and external valve, paper-plastic valve and Big S compacting machine. At present,
we hold over fifty inventions and patents.

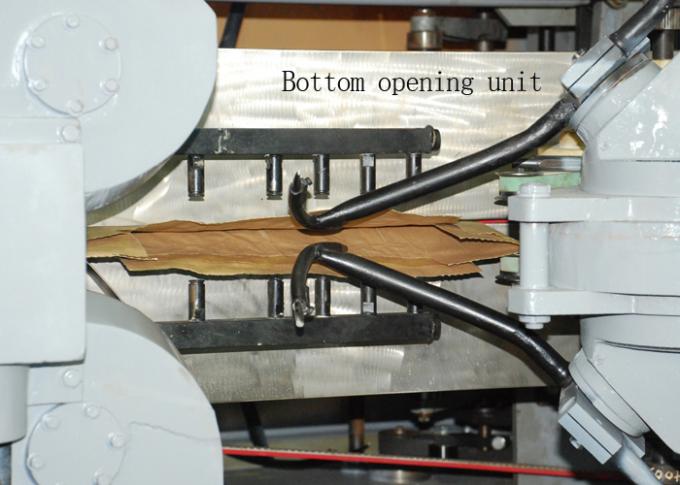

Bottom opening uint
