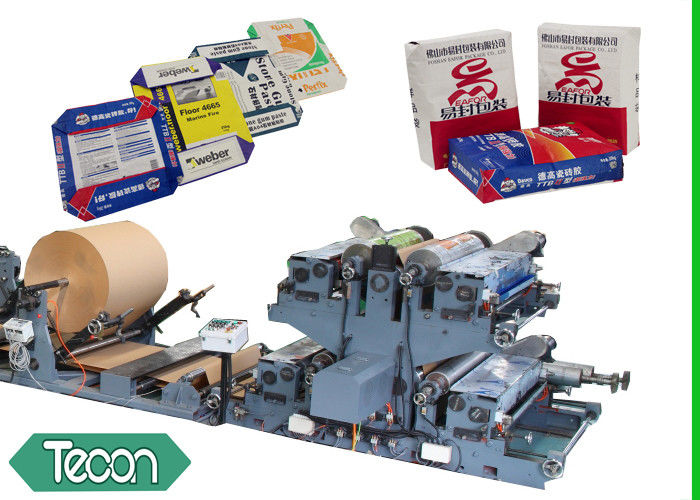

Multi function Bottom Pasted Automatic Paper Bag Making Machine For Cement

Multi function Bottom Pasted Automatic Paper Bag Making Machine For Cement

    • Multi function Bottom Pasted Automatic Paper Bag Making Machine For Cement
    • Multi function Bottom Pasted Automatic Paper Bag Making Machine For Cement
    • Multi function Bottom Pasted Automatic Paper Bag Making Machine For Cement
  • Multi function Bottom Pasted Automatic Paper Bag Making Machine For Cement

    Product Details:

    Place of Origin: China
    Brand Name: Tecon
    Certification: CE
    Model Number: HD4916BD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Wooden case
    Delivery Time: 5 months after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 16pcs per year
    Contact Now
    Detailed Product Description
    Weight: 34T Size: 23.5m×2.3m×1.8m( L×W×H)
    Working Hour: 22 Hours/day Air Consumption: 1,100L/min
    Paper Thickness: Normal Specification Paper Sealing & Cutting: Heat-Sealing Heat-Cutting
    Packaging Details: Wooden Case Computerized: Yes
    Color: User-defined Printing Style: Flexo Printing, 4 Colors



    Multi function Bottom Pasted Automatic Paper Bag Making Machine For Cement




    Brief Introduction:

    Foshan Tecon Package Machinery CO., LTD is a high-tech equipment manufacturer. We designed the first

    production line for paper bag 20 years ago, that's is about 1996, and now we are listed in the world top three

    in this industry and the only one in China able to design & manufacture the whole production line of  bottom

    sealed paper bag.

    The leading product of our company is the "high-speed automatic bottom-pasted bag making machine".  It is composed of a tuber machine and a bottomer machine.

    We have sold to these countries such as: Yemen,America,Iran,Malaysia,Syria,Togo,Rwanda,Egypt,

    Kazakhstan,

    India,Indonesia,Sri Lanka and so on. Our products have won CE certificate, and have lots of patents.




    Features of our full-automatic paper bag production line:

    1. Flat & glued bottom with filling valve;

    2. Different types for cement, chemicals, foods, tea, etc.

    3. 2~4 paper layers, with one extra PE/PP film available

    4. 35~50 million bags/year

    5. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system

    , Siemens electrical system

    6. Full technical service for installation, training and maintenance

    7. Full solution for factory construction and materials purchase.

    8.Detailed design of factory or workshop

    9.Installing and testing the whole production line

    10.Good after-sale and in-sale servcie




    Technical parameters of our production line:

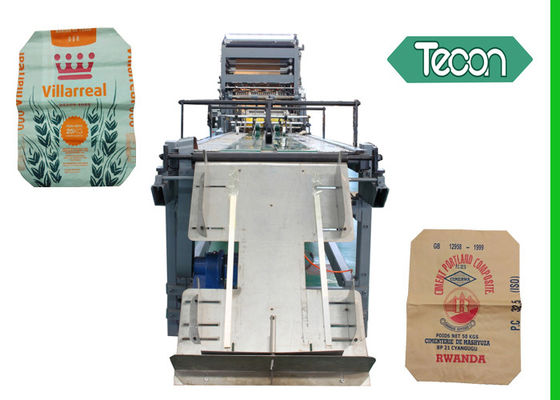

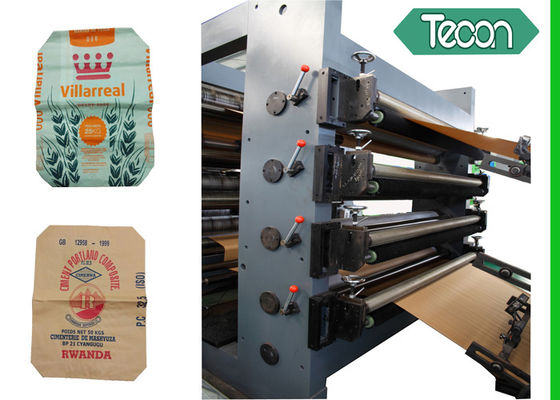

    HD4916BD Bottomer Machine

    (bottomer with strength sheet pasting unit)

    Operating condition

    Working hour

    22 hours/day

    Design temperature

    0~40℃

    Design humidity

    MAX. 95%

    Number required

    1 unit

    Model name

    HD4916BD





    Performance



    HD4916BD

    Speed

    MAX 80 bags/min

    Tube Width

    380~620 mm

    Bottom Width

    80~160 mm

    Valve Sheet Length *Width

    (100-300)﹡(120-340)adjustable

    Bag Length

    390~1020 mm

    Bottom Center Distance

    290~860 mm

    Number of ply

    2~4paper+1 PP/PE

    Strength sheet unit

    YES

    Strength sheet  length *width

    (270~520)﹡(80~160)

    Main Drive Motor

    35KW

    Machine size

    23.5﹡2.3﹡1.8(M)

    Machine weight

    N34(T)





    Composing of the production line

    HD4916BD Bottomer Machine

    (bottomer with strength sheet pasting unit)

    Name

    Quantity

    High speed feeder machine

    1

    Perforation of the exhaust outlet unit

    1

    Tube opening unit

    1

    Automatic gluing machine

    1

    Scrip sealing machine

    1

    Bag bottom turning unit

    1

    Counting and delivery line

    1

    Automatic delivering out unit

    1

    Piling up platform

    1

    Electric control unit

    1 (German Siemens)

    Vacuum-pump

    1 (German Rietschele)

    Bearing

    (Janpan NSK)






    After Sales:
    We offer the Preventative Maintenance and After Sales Service. For we Strongly feels about the importance

     of supporting our customers and the product solutions we provide. Also we offer one year guarantee period,

     paid service for whole life.


    Sample Bags:
    Multi function Bottom Pasted Automatic Paper Bag Making Machine For Cement

    Multi function Bottom Pasted Automatic Paper Bag Making Machine For Cement
