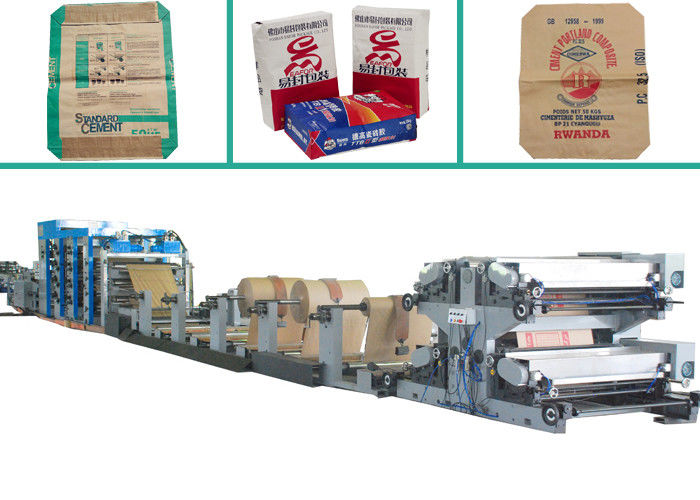

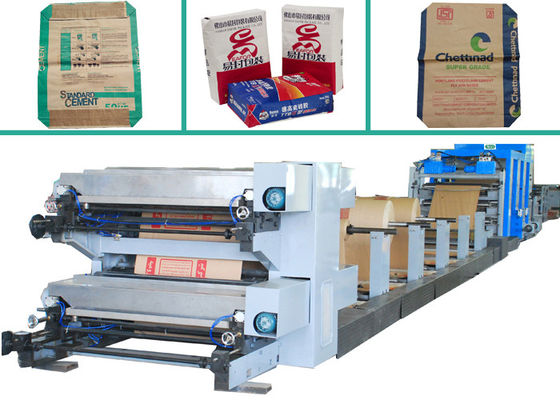

High Speed Automatic Bottom-pasted Food Paper Bag Making Machine with Strengthen Sheet and Pinter
Product Details:
| Place of Origin: |
China |
| Brand Name: |
Tecon |
| Certification: |
CE |
| Model Number: |
HD4913B+ZT9802 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1pcs |
| Price: |
negotiation |
| Packaging Details: |
Wooden case |
| Delivery Time: |
5 months after received your payment |
| Payment Terms: |
L/C, T/T |
| Supply Ability: |
16pcs per year |
Contact Now
Detailed Product Description
| Colour: |
Customized |
Strengthen Sheet: |
Yes |
| Printing Length: |
600mm ~ 950mm |
Printing Width: |
1100mm |
| Paper Layer: |
3 ~ 4 |
Total Weight: |
52.7T |
| High Light: |
food bag making machine, food paper bag machine |
High Speed Automatic Bottom-pasted Food Paper Bag Making Machine with Strengthen Sheet and Pinter in Tuber
- Features of our full-automatic paper bag production line
- Flat & glued bottom with filling valve;
- Different types for cement, chemicals, foods, tea, etc.
- 2-color automatic printing
- 2~4 paper layers, with one extra PE/PP film available
- 35~50 million bags/year
- Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
- Full technical service for installation, training and maintenance
- Full solution for factory construction and materials purchase.
- Technical parameters of our production line
HD4913B Bottomer Machine
Operating condition
|
Working hour
|
22 hours/day
|
|
Design temperature
|
0~40℃
|
|
Design humidity
|
MAX. 95%
|
|
Number required
|
1 unit
|
|
Model name
|
HD4913B
|
Performance
|
Speed
|
80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)
|
|
Bag length
|
520~880mm
|
|
Bag width
|
420~600 mm
|
|
Bottom width
|
90~130mm
|
|
Bottom open width
|
200~380mm
|
|
Distance between bottom centers
|
420~780mm
|
|
Valve sheet length
|
100~250mm
|
|
Valve sheet width
|
120~170mm
|
|
Main drive motor
|
33kw
|
|
Total weight
|
22.7T
|
|
Size of whole set
|
21.3m×2.3.m×1.8m ( L×W×H)
|
|
Valve sheet reel diameter
|
Max.1,300mm
|
Composing of the production line
HD4913B Bottomer Machine
|
Name
|
Quantity
|
|
High speed feeder machine
|
1
|
|
Perforation machine
|
1
|
|
Tube opening unit
|
1
|
|
Automatic gluing machine
|
1
|
|
Scrip sealing machine
|
1
|
|
Bag bottom turning unit
|
1
|
|
Counting and delivery line
|
1
|
|
Automatic delivering out unit
|
1
|
|
Piling up platform
|
1
|
|
Electric control unit
|
1 (Schneider, German)
|
|
Vacuum-pump
|
1 (Schneider, German)
|
|
Item No.
|
Name
|
Unit
|
Specification Value
|
|
1
|
Bag Spew.
|
Length of bag tube
|
㎜
|
Cutoff length + 40
|
|
Cutoff length
|
㎜
|
700 -1050(±4)29 Grades,Each grade 12.5
|
|
Width of bag tube
|
㎜
|
400 – 600(no grade) adjustment
|
|
2
|
Printing spew.
|
Printing length
|
㎜
|
600 – 950
|
|
Printing width
|
㎜
|
1100
|
|
Printing ink
|
|
Ink
|
|
Color category
|
|
two-color overprint, four-color overprint
|
|
Formed thickness
|
㎜
|
6
|
|
3
|
|
Paper layer
|
layer
|
3 – 4
|
|
4
|
|
Production efficiency
|
bag / min
|
100 – 150
|
|
Name of Glue
|
|
Metamorphic Starch, Methyl or CMC
|
|
5
|
Scroll spew.
|
Width of Scroll
|
㎜
|
1220
|
|
Scroll diameter
|
㎜
|
1220
|
|
Diameter of scroll core
|
㎜
|
75 – 80
|
|
6
|
Main motor
|
Main Motor
|
|
Y180L – 4 TYPE, 22KW 1 unit
|
|
Main motor, delta belt
|
|
C-type, length: 2500mm quantity: 6
|
|
7
|
Total power
|
KW
|
30.9
|
|
Weight
|
T
|
34
|
|
Outline dimensions
(Length x Width x Height)
|
M
|
34 x 2.4 x 2.7
|
