25T and 33kw Bottomer Machine of Automatic Paper Bag Making Machine with Servo System
- Features of our full-automatic paper bag production line
- Flat & glued bottom with filling valve;

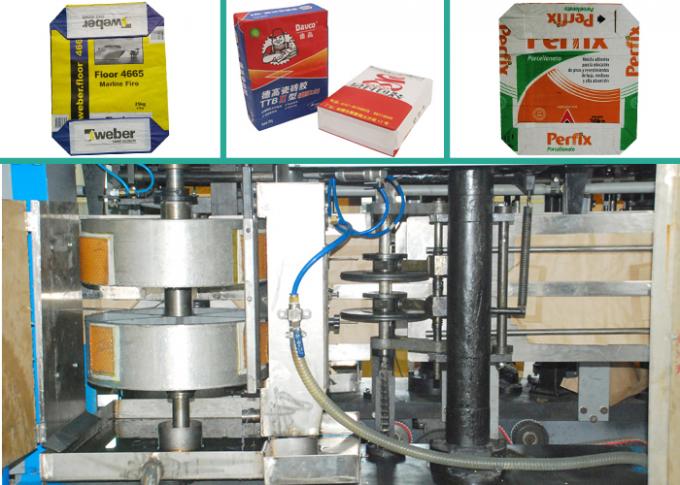

- Different types for cement, chemicals, foods, tea, etc.
- 2-color automatic printing
- 2~4 paper layers, with one extra PE/PP film available
- 35~50 million bags/year
- Full technical service for installation, training and maintenance
- Full solution for factory construction and materials purchase.
- Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
- Technical parameters of our production lin
HD4916 Bottomer Machine
Operating condition
|
Working hour
|
22 hours/day
|
|
Design temperature
|
0~40℃
|
|
Design humidity
|
MAX. 95%
|
|
Number required
|
1 unit
|
|
Model name
|
HD4916
|
Performance
|
Speed
|
120 bags/min(Depends on paper quality, number of ply and operators’ skill.)
|
|
Bag length
|
520~880mm
|
|
Bag width
|
420~600 mm
|
|
Bottom width
|
90~160mm
|
|
Bottom open width
|
200~440mm
|
|
Distance between bottom centers
|
420~780mm
|
|
Valve sheet length
|
100~300mm(adjustable)
|
|
Valve sheet width
|
120~240mm(adjustable)
|
|
Main drive motor
|
33kw
|
|
Total weight
|
25T
|
|
Size of whole set
|
22m×1.8m×1.8m ( L×W×H)
|
|
Valve sheet reel diameter
|
Max.1,300mm
|
Composing of the production line
HD4916 Bottomer Machine
|
Name
|
Quantity
|
|
High speed feeder machine
|
1
|
|
Perforation machine
|
1
|
|
Tube opening unit
|
1
|
|
Automatic gluing machine
|
1
|
|
Scrip sealing machine
|
1
|
|
Bag bottom turning unit
|
1
|
|
Counting and delivery line
|
1
|
|
Automatic delivering out unit
|
1
|
|
Piling up platform
|
1
|
|
Electric control unit
|
1
|
|
Vacuum-pump
|
1
|
ZT9802S Tuber Machine
Operating condition
|
Working hour
|
22 hours/day
|
|
Design temperature
|
0~40℃
|
|
Design humidity
|
MAX. 95%
|
|
Number required
|
1 unit
|
|
Model name
|
ZT9802S
|
Performance
|
Speed
|
100~160 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
|
|
Tube length
|
400~1400 mm
|
|
Tube width
|
320~620 mm
|
|
Type of cutting
|
Step cut/ Step cut + flat cut
|
|
Tube Cut Length
|
420~1400mm
|
|
Number of ply
|
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
|
|
Printing width
|
1300 mm(MAX)
|
|
Paper reel width
|
660~1260 mm
|
|
Paper reel diameter
|
Max. 1, 300 mm
|
|
Main drive motor
|
47kw
|
|
Size of whole set
|
35.3m×2.4m×2.7m( L×W×H)
|
|
Total weight
|
33 T
|
Composing of the machine
ZT9802S Tuber Machine
|
Name
|
Quantity
|
|
2-color printing machine
|
1
|
|
Mill roll stands
|
5
|
|
Paper web guide
|
1
|
|
Automatic paper unwinding
|
1
|
|
Auxiliary web guide
|
1
|
|
Perforation unit
|
1
|
|
Cross stepped gluing unit
|
1
|
|
Longitude seam gluing unit
|
1
|
|
Tubes forming unit
|
1
|
|
Driving tearing-off unit
|
1
|
|
Delivery and counting unit
|
1
|
|
Electrical system
|
1 (Schneider, France)
|
|
Bearing
|
(NSK, Japan)
|
|
Compressor
|
1
|
|
Servo motors
|
4
|
Foshan Tecon Package Machinery CO., LTD is a high-tech equipment manufacturer. We designed the
first production line for paper bag 20 years ago, that's is about 1996, and now we are listed in the world
top three in this industry and the only one in China able to design & manufacture the whole production
line of bottom sealed paper bag.
The leading product of our company is the "high-speed automatic bottom-pasted bag making machine". It is composed of a tuber machine and a bottomer machine.
We have sold to these countries such as: Yemen,America,Iran,Malaysia,Syria,Togo,Rwanda,Egypt,
Kazakhstan,India,Indonesia,Sri Lanka and so on. Our products have won CE certificate, and have lots of patents.

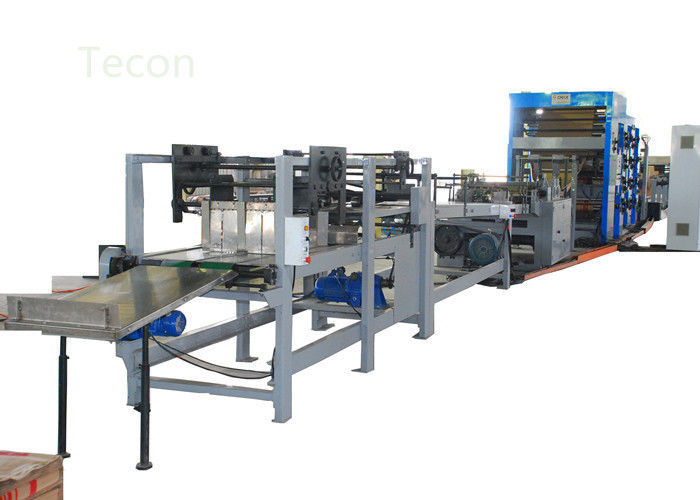

The ZT9802S tuber machine, which is developed by our company on the basis of ZT9804 standard tuber machine, is added a servo control component on each of the four key procsses (printing,perforation, gluing and separation), to form a closed-loop servo control system by the PLC, servo control module, the main frequency traction motor, servo motor group,encoder, color components to ensure that the cutting position of each printing bags matches the color patch of the tube. Through the touch screen, it is easy and visualized to adjust the specification of tube.
When it is on-line printing, ZT01 print unit prints precisely and neatly, and it only needs to replace print roller and its gear. Through adjustment of thorn-ranked knife position, ZT07 separation machine can cut both the ladder-cutting and straight-cutting tubes. Other related adjustments are operated on touch screen, saving of labor and time .
When it is not on-line printing, besides the above characteristics, when requires more high-precision printing quality, it can complete printing by the using of other printing equipments, producing tubes in ZT9802S Tuber machine, expanding the specification of tubes of ZT9802S(400mm-2000mm). Need not to change any specification wheel, all adjustments are operated on the touch screen.
ZT9802S is applicable to producing variety of paper bags, especially when in producing starch paper bags, tea bags, chemical bags and so on, which need frequent specification changing and high-precision printing quality, it can fully play its unique advantages.
