Water Inker Bottom Sealing Bag Making Production Equirtments With Servo Systerm
HD4916 Bottomer Machine Operating condition
|
Valve sheet length
|
100~300mm(adjustable)
|
|
Valve sheet width
|
120~240mm(adjustable)
|
|
Main drive motor
|
33kw
|
|
Total weight
|
25T
|
|
Size of whole set
|
22m×1.8m×1.8m ( L×W×H)
|
|
Valve sheet reel diameter
|
Max.1,300mm
|
Technical parameters of ZT9804:
|
Speed
|
130~150 tubes/min
|
|
Space between tape steps
|
20 mm
|
|
Tube Cut Length
|
670~1035mm
|
|
Number of ply
|
2~4 paper + 1 PP/PE
|
|
Diameter of print roller
|
ø144～ø314 mm
|
|
Printing width
|
1300 mm(MAX)
|
|
Paper reel width
|
860~1260 mm
|
|
Paper reel diameter
|
Max. 1, 300 mm
|
|
Air consumption
|
1,100L/min
|
|
Main drive motor
|
30kw
|
|
Size of whole set
|
34.3m×2.4m×2.7m( L×W×H)
|
|
Total weight
|
30 T
|
Features of our full-automatic paper bag production line:
1. High Speed Rotary Feeder
2. Tube Alignment
3. Deflector for Irregular Tubes
4. Bottom Creasing Line Station
5. Air Vent Perforation
6. Bottom Opening Unit
7. Valve Station with Winding Station
8. Pasting Internal Strengthen Sheet Unit
9. Bottom Closing Stations
10. Pasting External Strengthen Sheet Unit
Our machine:

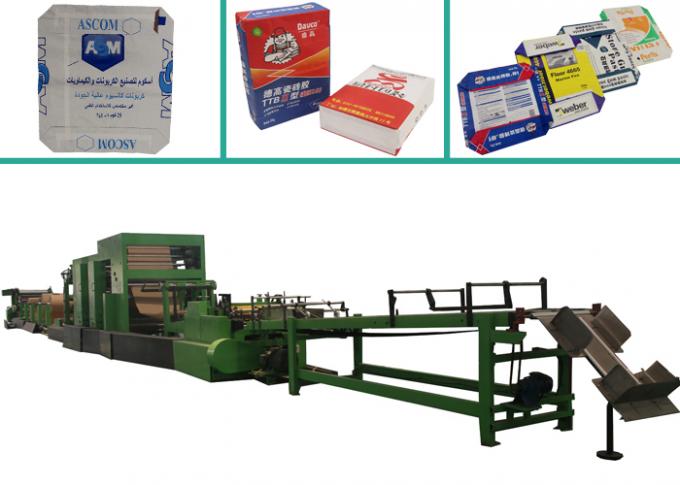

Automatic valve paper bag machine for cement,chemicals and food

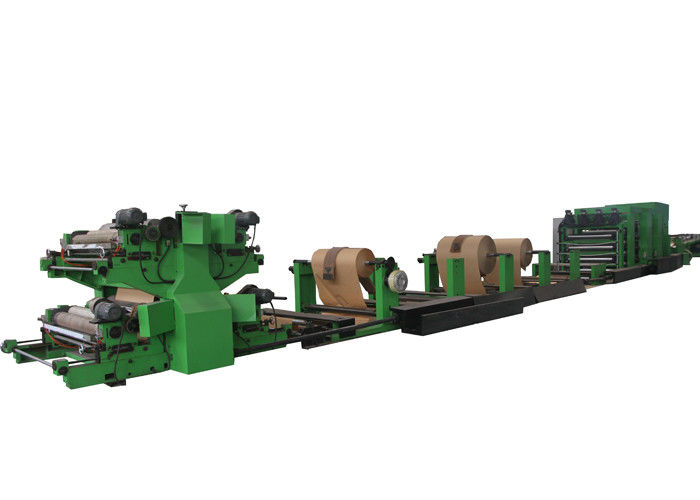

The ZT9802S tuber machine, which is developed by our company on the basis of ZT9804 standard tuber
machine, is added a servo control component on each of the four key procsses (printing,perforation,
gluing and separation), to form a closed-loop servo control system by the PLC, servo control module,
the main frequency traction motor, servo motor group,encoder, color components to ensure that the
cutting position of each printing bags matches the color patch of the tube.
