Full Automatic Kraft Paper Bag Making Machines / Paper Bag Manufacturing Machine

Full Automatic Kraft Paper Bag Making Machines / Paper Bag Manufacturing Machine

    • Full Automatic Kraft Paper Bag Making Machines / Paper Bag Manufacturing Machine
    • Full Automatic Kraft Paper Bag Making Machines / Paper Bag Manufacturing Machine
  • Full Automatic Kraft Paper Bag Making Machines / Paper Bag Manufacturing Machine

    Product Details:

    Place of Origin: China
    Brand Name: Tecon
    Certification: CE
    Model Number: ZT9802SD+HD4916

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Wooden case
    Delivery Time: 5 months after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 16pcs per year
    Contact Now
    Detailed Product Description
    Servo System: Yes Type Of Cutting: Step Cut&Flat Cut
    Tuber Size: 34.3m×2.4m×2.7m( L×W×H) Bottomer Size: 22m×1.8m×1.8m ( L×W×H)
    Paper Layer: 2~4paper+1PP/PE Colour: Customized
    High Light:

    paper bag machine

    ,

    paper bag equipment

    Full-Automatic Kraft Paper Bag Making Machine with Miniature Circuit Breaker



    • Features of our full-automatic paper bag production line
    1. Different types for cement, chemicals, foods, tea, etc.
    2. 2~4 paper layers, with one extra PE/PP film available
    3. 35~50 million bags/year
    4. 4-color automatic printing
    5. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
    6. Flat & glued bottom with filling valve;
    7. Full technical service for installation, training and maintenance
    8. Full solution for factory construction and materials purchase.
    • Technical parameters of our production line

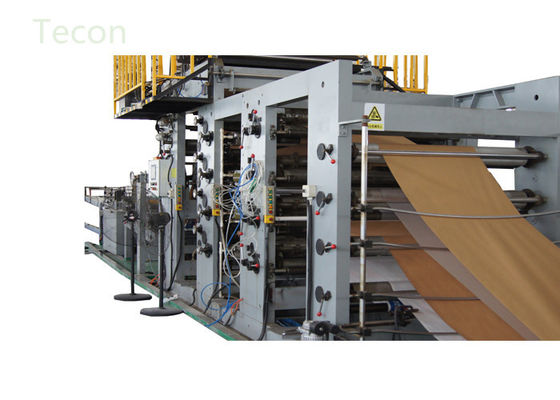

    ZT9802SD Tuber Machine
    Operating condition

    Working hour

    22 hours/day

    Design temperature

    0~40℃

    Design humidity

    MAX. 95%

    Number required

    1 unit

    Model name

    ZT9802SD



    Performance


    Speed

    120 tubes/min(Depends on paper quality, number of ply and operators’ skill.)

    Tube length

    400~1400 mm

    Tube width

    320~620 mm

    Tube Cut Length

    420~1400mm

    Number of ply

    2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)

    Diameter of print roller

    ø196~ø312 mm

    Printing width

    1300 mm(MAX)

    Paper reel width

    660~1260 mm

    Paper reel diameter

    Max. 1, 300 mm

    Air consumption

    1,100L/min

    Main drive motor

    27kw

    Size of whole set

    35.3m×2.4m×2.7m( L×W×H)

    Total weight

    34 T

    Composing of the machine
    ZT9802SD Tuber Machine

    Name

    Quantity

    2-color printing machine

    1

    Mill roll stands

    5

    Paper web guide

    1

    Automatic paper unwinding

    1

    Auxiliary web guide

    1

    Perforation  unit

    1

    Cross stepped gluing unit

    1

    Longitude seam gluing unit

    1

    Tubes forming unit

    1

    Driving tearing-off unit

    1

    Delivery and counting unit

    1

    Electrical system

    1 (Schneider, France)

    Bearing

    (NSK, Japan)

    Compressor

    1

    Servo motors

    4

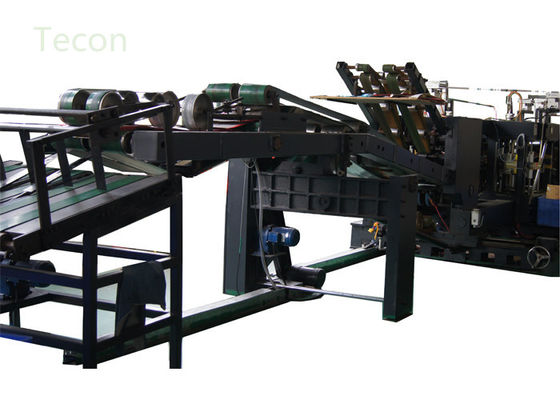

    HD4916 Bottomer Machine

    Operating condition

    Working hour

    22 hours/day

    Design temperature

    0~40℃

    Design humidity

    MAX. 95%

    Number required

    1 unit

    Model name

    HD4916

    Performance

    Speed

    120 bags/min(Depends on paper quality, number of ply and operators’ skill.)

    Bag length

    520~880mm

    Bag width

    420~600 mm

    Bottom width

    90~160mm

    Bottom open width

    200~440mm

    Distance between bottom centers

    420~780mm

    Valve sheet length

    100~300mm(adjustable)

    Valve sheet width

    120~240mm(adjustable)

    Main drive motor

    33kw

    Total weight

    25T

    Size of whole set

    22m×1.8m×1.8m ( L×W×H)

    Valve sheet reel diameter

    Max.1,300mm

    Composing of the production line

    HD4916 Bottomer Machine

    Name

    Quantity

    High speed feeder machine

    1

    Perforation machine

    1

    Tube opening unit

    1

    Automatic gluing machine

    1

    Scrip sealing machine

    1

    Bag bottom turning unit

    1

    Counting and delivery line

    1

    Automatic delivering out unit

    1

    Piling up platform

    1

    Electric control unit

    Vacuum-pump


    •  Sample Bags
