Professional Kraft Paper Bag Machinery with Compressed Air , Paper Bag Production Line

Product Details:

Place of Origin:	China
Brand Name:	Tecon
Certification:	CE
Model Number:	ZT9802SD+HD4913

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiation
Packaging Details:	Wooden case
Delivery Time:	5 months after received your payment
Payment Terms:	L/C, T/T
Supply Ability:	16pcs per year

Contact Now

Detailed Product Description

Servo System:	Yes	Type Of Cutting:	Step Cut&Flat Cut
Tuber Size:	34.3m×2.4m×2.7m( L×W×H)	Bottomer Size:	21.3m×2.3m×1.8m( L×W×H)
Paper Layer:	2~4paper+1PP/PE	Colour:	Customized
High Light:	paper bag machinery , paper bag machine

Full-Automatic Kraft Paper Bag Making Machine with Compressed Air

Features of our full-automatic paper bag production line

Flat & glued bottom with filling valve;
Different types for cement, chemicals, foods, tea, etc.
2~4 paper layers, with one extra PE/PP film available
35~50 million bags/year
4-color automatic printing
Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
Full technical service for installation, training and maintenance
Full solution for factory construction and materials purchase.

Technical parameters of our production line

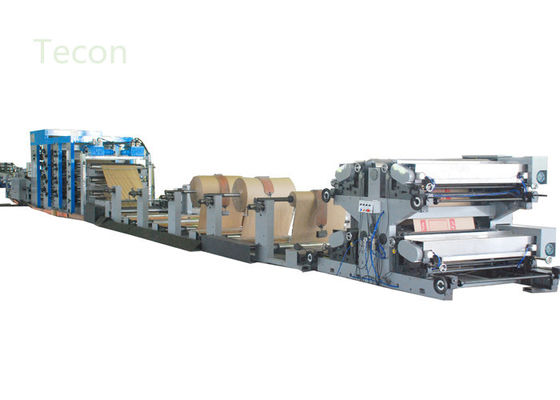

ZT9802SD Tuber Machine
Operating condition

Working hour	22 hours/day
Design temperature	0~40℃
Design humidity	MAX. 95%
Number required	1 unit
Model name	ZT9802SD

Performance

Speed	120 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
Tube length	400~1400 mm
Tube width	320~620 mm
Tube Cut Length	420~1400mm
Number of ply	2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
Diameter of print roller	ø196～ø312 mm
Printing width	1300 mm(MAX)
Paper reel width	660~1260 mm
Paper reel diameter	Max. 1, 300 mm
Air consumption	1,100L/min
Main drive motor	27kw
Size of whole set	35.3m×2.4m×2.7m( L×W×H)
Total weight	34 T

Composing of the machine
ZT9802SD Tuber Machine

Name	Quantity
2-color printing machine	1
Mill roll stands	5
Paper web guide	1
Automatic paper unwinding	1
Auxiliary web guide	1
Perforation unit	1
Cross stepped gluing unit	1
Longitude seam gluing unit	1
Tubes forming unit	1
Driving tearing-off unit	1
Delivery and counting unit	1
Electrical system	1 (Schneider, France)
Bearing	(NSK, Japan)
Compressor	1
Servo motors	4

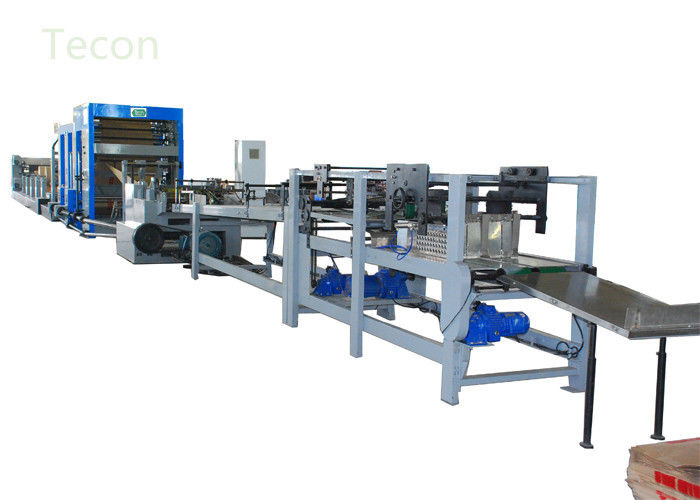

HD4913 Bottomer Machine

Operating condition

Working hour	22 hours/day
Design temperature	0~40℃
Design humidity	MAX. 95%
Number required	1 unit
Model name	HD4913

Performance

Speed	80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)
Bag length	520~880mm
Bag width	420~600 mm
Bottom width	90~130mm
Bottom open width	200~380mm
Distance between bottom centers	420~780mm
Valve sheet length	100~250mm
Valve sheet width	120~170mm
Main drive motor	33kw
Total weight	22.7T
Size of whole set	21.3m×2.3.m×1.8m ( L×W×H)
Valve sheet reel diameter	Max.1,300mm

Composing of the production line

HD4913 Bottomer Machine

Name	Quantity
High speed feeder machine	1
Perforation machine	1
Tube opening unit	1
Automatic gluing machine	1
Scrip sealing machine	1
Bag bottom turning unit	1
Counting and delivery line	1
Automatic delivering out unit	1
Piling up platform	1
Electric control unit	1 (Schneider, German)
Vacuum-pump	1 (Schneider, German)

Brief Introduction:

Foshan Tecon Package Machinery CO., LTD is a high-tech equipment manufacturer. We designed the

first production line for paper bag 20 years ago, that's is about 1996, and now we are listed in the world

top three in this industry and the only one in China able to design & manufacture the whole production

line of bottom sealed paper bag.

The leading product of our company is the "high-speed automatic bottom-pasted bag making machine". It is composed of a tuber machine and a bottomer machine.

We have sold to these countries such as: Yemen,America,Iran,Malaysia,Syria,Togo,Rwanda,Egypt,

Kazakhstan,India,Indonesia,Sri Lanka and so on. Our products have won CE certificate, and have lots of patents.
