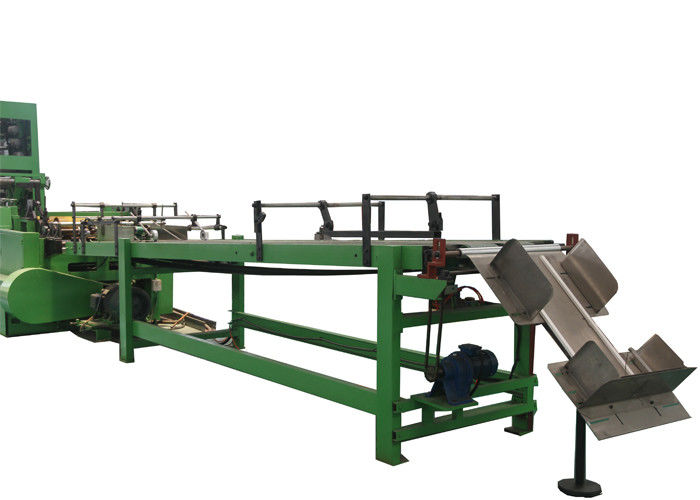

ZT9804S Cement Kraft Package Valve Paper Bags Making Machine With Acanthopore
Features of our full-automatic paper bag production line:
1. Flat & glued bottom with filling valve;
2. Different types for cement, chemicals, foods, tea, etc.
3. 4-color automatic printing
4. 2~4 paper layers, with one extra PE/PP film available
5. 35~50 million bags/year
6. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
7. Full technical service for installation, training and maintenance
8. Full solution for factory construction and materials purchase.
Technical parameters of our production line:
ZT9804S Tuber Machine
Operating condition
|
Working hour
|
22 hours/day
|
|
Design temperature
|
0~40℃
|
|
Design humidity
|
MAX. 95%
|
|
Number required
|
1 unit
|
|
Model name
|
ZT9804S
|
Performance
|
Speed
|
80~120 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
|
|
Tube length
|
400~1400 mm
|
|
Tube width
|
380~620 mm
|
|
Type of cutting
|
Step cut&Flat cut
|
|
Number of ply
|
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
|
|
Printing width
|
1300 mm(MAX)
|
|
Paper reel width
|
660~1260 mm
|
|
Paper reel diameter
|
Max. 1, 300 mm
|
|
Main drive motor
|
47kw
|
|
Size of whole set
|
35.3m×2.4m×2.7m( L×W×H)
|
|
Total weight
|
32 T
|
Composing of the machine
ZT9804S Tuber Machine
|
Name
|
Quantity
|
|
4-color printing machine
|
1
|
|
Paper reel stands
|
5
|
|
Paper web guide
|
1
|
|
Automatic paper rectifier
|
1
|
|
Auxiliary paper driver
|
1
|
|
Perforation unit
|
1
|
|
Latitudinal gluing machine
|
1
|
|
Longitude gluing machine
|
1
|
|
Tubes forming unit
|
1
|
|
Driving tearing-off unit
|
1
|
|
Delivery and counting unit
|
1
|
|
Electric control system
|
1 (Schneider)
|
|
Air compressor
|
1
|
|
Servo system
|
1
|
Brief Introduction of Our Company
Foshan Tecon Package Machinery CO., LTD is a high_tech equipment manufacturer. We designed the
first production line for paper bag 20 years ago, that's is about 1996, and now we are listed in the world
top three in this industry and the only one in China able to design & manufacture the whole production
line of bottom sealed paper bag.
The leading product of our company is the "high-speed automatic bottom-pasted bag making machine".
It is composed of a tuber machine and a bottomer machine.
The brief history of our company:
Our equipment has served Chinese paper bag industry for 20 years and started running into oversea
mar-ket for 13years. Now there are more than30 Tecon paper bag production lines operating in 13 countries, and this is not complete statistics .
They are producing paper bags used for packing cement, sugar, milk powder, rice, chemical products, etc.
We have sold to such as: Yemen, America, Iran,Malaysia,Syria. These clients have bought our cement paper bags production lines many years ago .
The recent clients we can contact now are Togo, Rwanda,Egypt, Kazakhstan,India, Indonesia , Sri Lanka and so on. They have bought our cement paper bags production lines. Clients in China like Shanghai province, Shandong province, Liaoning province, Jangsu province, Sichuan province, Guangdong province(where our factory located) have bought our chemical paper bags production lines, and many clients have bought two production lines.
Our machine:
Automatic valve paper bag machine for cement,chemicals and food
Sample bags:
If you are interested in our products, please do not hesitate to contact us.
