Numerical Controlled Valve Paper Bag Making Machine For Coffee Bean , Milk Powder Bags
Product Details:
| Place of Origin: |
China |
| Brand Name: |
Tecon |
| Certification: |
CE |
| Model Number: |
HD4916BD+ZT9802S |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 Set |
| Price: |
Negotiation |
| Packaging Details: |
Ply Wood case |
| Delivery Time: |
3-5 months after received your payment |
| Payment Terms: |
T/T or L/C |
| Supply Ability: |
16 Pieces per Year |
Contact Now
Detailed Product Description
| Manufacturer: |
Tecon, Foshan |
Unwinding Stations With Lateral Adjustment: |
5 With Vice Paper Reels |
| Control: |
Servo Control |
Bag Opening: |
Valve Paper Bag |
| Print Machine: |
2 - 4 Colours |
Yield: |
5.35 - 50 Million Bags / Year |
| High Light: |
paper bag manufacturing machines, paper bag manufacturing machinery |

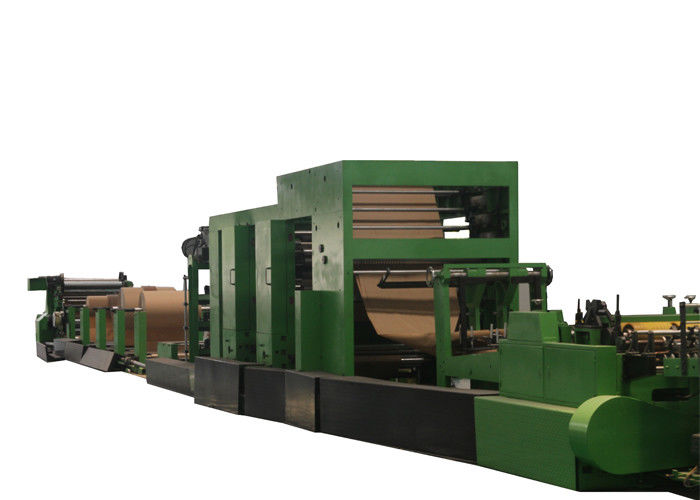

Numerical Controlled Valve Paper Bag Making Machine For Coffee Bean, White Flowers, Milk Powder
Tuber Machine
Operating condition
|
Working hour
|
22 hours/day
|
|
Design temperature
|
0~40℃
|
|
Design humidity
|
MAX. 95%
|
|
Number required
|
1 unit
|
|
Model name
|
ZT9804S
|
Performance
|
Speed
|
80~120 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
|
|
Tube length
|
400~1400 mm
|
|
Tube width
|
380~620 mm
|
|
Type of cutting
|
Step cut&Flat cut
|
|
Number of ply
|
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
|
|
Printing width
|
1300 mm(MAX)
|
|
Paper reel width
|
660~1260 mm
|
|
Paper reel diameter
|
Max. 1, 300 mm
|
|
Main drive motor
|
47kw
|
|
Size of whole set
|
35.3m×2.4m×2.7m( L×W×H)
|
|
Total weight
|
32 T
|
Composing of the machine
ZT9804S Tuber Machine
|
Name
|
Quantity
|
|
4-color printing machine
|
1
|
|
Paper reel stands
|
5
|
|
Paper web guide
|
1
|
|
Automatic paper rectifier
|
1
|
|
Auxiliary paper driver
|
1
|
|
Perforation unit
|
1
|
|
Latitudinal gluing machine
|
1
|
|
Longitude gluing machine
|
1
|
|
Tubes forming unit
|
1
|
|
Driving tearing-off unit
|
1
|
|
Delivery and counting unit
|
1
|
|
Electric control system
|
1 (Schneider)
|
|
Air compressor
|
1
|
|
Servo system
|
1
|

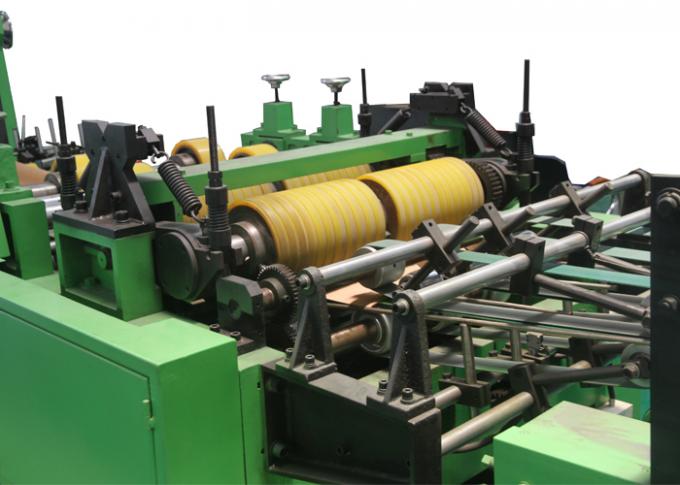

Our machine Details:
Our Customers:
If you are interested in our products, please do not hesitate to contact us.
