Bottom-pasted Paper Bag Manufacturing Machine , Lime Bags Making Equipment
Product Details:
| Place of Origin: |
China |
| Brand Name: |
Tecon |
| Certification: |
CE |
| Model Number: |
ZT9804 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1Unit |
| Price: |
negotiation |
| Packaging Details: |
Wooden case |
| Delivery Time: |
3 months after received your payment |
| Supply Ability: |
16pcs per year |
Contact Now
Detailed Product Description
| Colour: |
Customized |
Total Weight: |
30T |
| Main Drive Motor: |
30kw |
Size: |
34.3m×2.4m×2.7m( L×W×H) |
| Cut Type: |
Straight |
PLC: |
No |
| High Light: |
paper bag machine, paper bag equipment |
Automatic and High-speed Bottom-pasted Paper Bag Making Machine for Lime
- Features of our full-automatic paper bag production line
- Full technical service for installation, training and maintenance
- Full solution for factory construction and materials purchase
- Flat & glued bottom with filling valve;
- Different types for cement, chemicals, foods, tea, etc.
- 4-color automatic printing
- 2~4 paper layers, with one extra PE/PP film available
- 35~50 million bags/year
- Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
- Technical parameters of our production line
ZT9804 Tuber Machine
Operating condition
|
Working hour
|
22 hours/day
|
|
Design temperature
|
0~40℃
|
|
Design humidity
|
MAX. 95%
|
|
Number required
|
1 unit
|
|
Model name
|
ZT9804
|
Performance
|
Speed
|
130~150 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
|
|
Tube length
|
670~1035 mm
|
|
Tube width
|
420~600 mm
|
|
Space between tape steps
|
20 mm
|
|
Tube Cut Length
|
670~1035mm
|
|
Number of ply
|
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
|
|
Diameter of print roller
|
ø144～ø314 mm
|
|
Printing width
|
1300 mm(MAX)
|
|
Paper reel width
|
860~1260 mm
|
|
Paper reel diameter
|
Max. 1, 300 mm
|
|
Air consumption
|
1,100L/min
|
|
Main drive motor
|
30kw
|
|
Size of whole set
|
34.3m×2.4m×2.7m( L×W×H)
|
|
Total weight
|
30 T
|
Composing of the production line
ZT9804 Tuber Machine
|
Name
|
Quantity
|
|

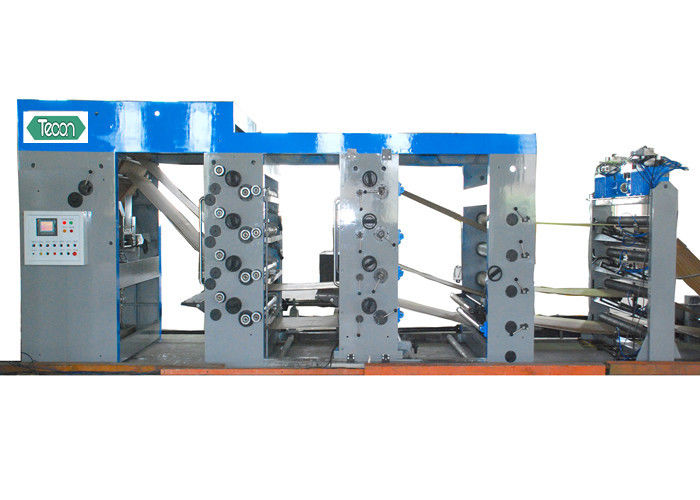

4-color printing machine
|
1
|
|
Paper reel stands
|
1
|
|
Paper web guider
|
1
|
|
Automatic paper rectifier
|
1
|
|
Auxiliary paper driver
|
1
|
|
Perforation machine
|
1
|
|
Latitudinal gluing machine
|
1
|
|
Longitude gluing machine
|
1
|
|
Tubes forming unit
|
1
|
|
Driving tearing-off
|
1
|
|
Delivery & counting line
|
1
|
|
Electric control system
|
1 (Schneider, German)
|
|
Air compressor
|
1
|
