Automatic Computer Control Paper Tube Making Machine With Press Roller and Rotary Feeder

Automatic Computer Control Paper Tube Making Machine With Press Roller and Rotary Feeder

Automatic Computer Control Paper Tube Making Machine With Press Roller and Rotary Feeder

Product Details:

Place of Origin: China
Brand Name: Tecon
Certification: CE
Model Number: ZT 9804

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 3 - 5 Month After Receive The Payment
Payment Terms: L/C, T/T
Supply Ability: 16 Set Per Year
Contact Now
Detailed Product Description
Bag Type: For Cement, Chemicals Powder, Foods, Tea, Etc.  Printing Color: 2 - 4 Colours
Production: 5.5 - 50 Million Bags / Year Ply: 2 - 4 Paper + 1 PP / PE
Size Of Machine: 34.3m X 2.4m X 2.7m Weight: 30 Tons
High Light:

paper tube making machines

,

bags machine

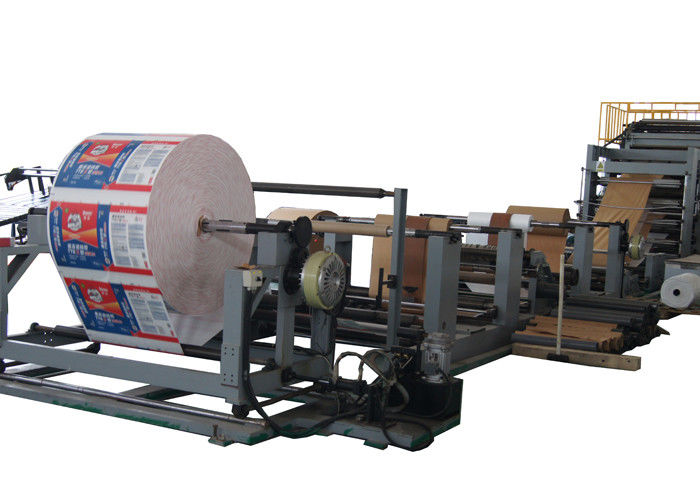

Computer Control Paper Tube Making Machine With Press Roller and Rotary Feeder



The ZT9802S tuber machine, which is developed by our company on the basis of ZT9804 standard tuber

machine, is added a servo control component on each of the four key procsses (printing,perforation,

gluing and separation), to form a closed-loop servo control system by the PLC, servo control module,

the main frequency traction motor, servo motor group,encoder, color components to ensure that the

 cutting position of each printing bags matches the color patch of the tube. Through the touch screen,

it is easy and visualized to adjust the specification of tube.





ZT9804 Paper Tube Making Machine Operating Condition:







Speed

100~160 tubes/min

Tube length

400~1400 mm

Tube width

320~620 mm

Type of cutting

Step cut/ Step cut + flat cut

Tube Cut Length

420~1400mm

Printing width

1300 mm(MAX)

Paper reel width

660~1260 mm

Paper reel diameter

Max. 1, 300 mm

Main drive motor

47kw

Size of whole set

35.3m×2.4m×2.7m( L×W×H)

Total weight

33 T

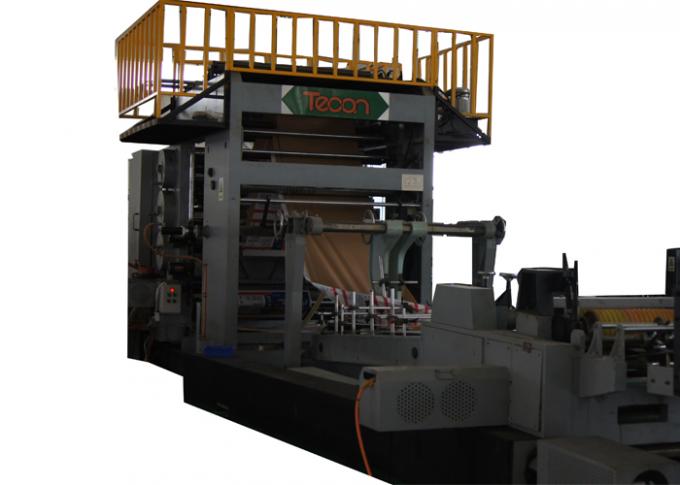

Part of Our Machine:



Automatic Computer Control Paper Tube Making Machine With Press Roller and Rotary Feeder

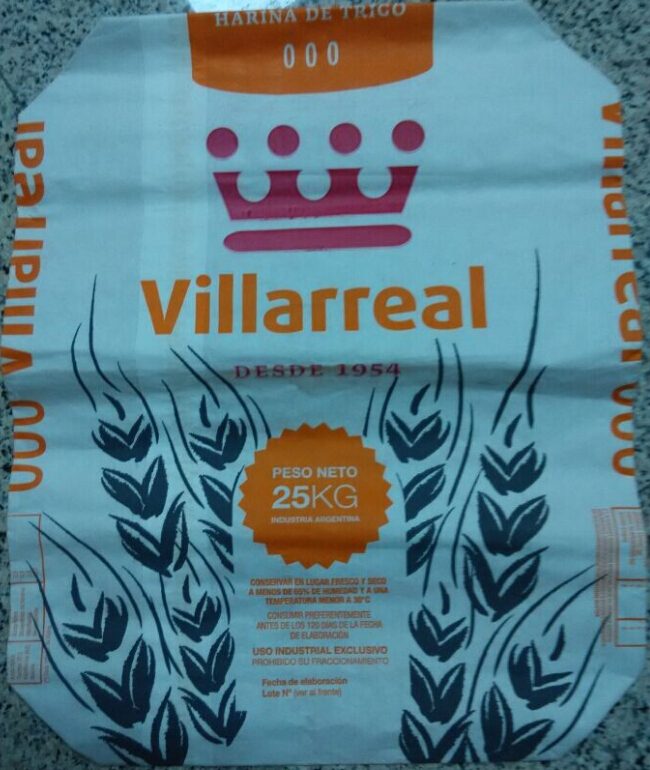

Bag Sample:



Automatic Computer Control Paper Tube Making Machine With Press Roller and Rotary Feeder

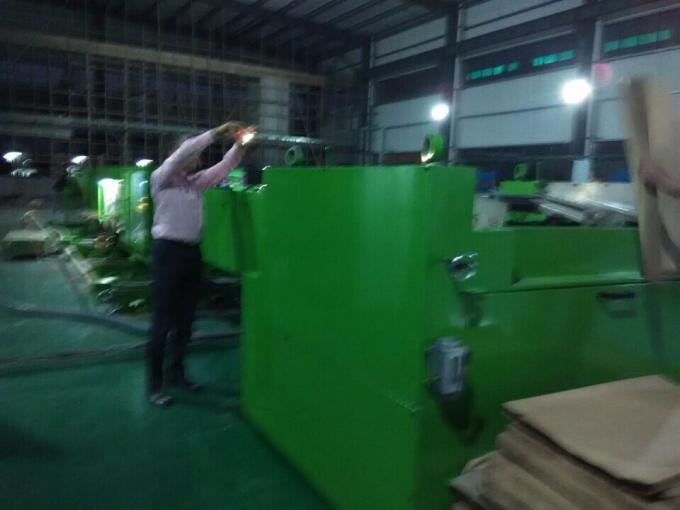

Fairs and customers:



Automatic Computer Control Paper Tube Making Machine With Press Roller and Rotary Feeder
