25 KG Starch Kraft Paper Bag Making Machine With Both End Pasted Stepped Cut Valve
Features of our full-automatic paper bag production line:
1. High Speed Rotary Feeder
2. Tube Alignment
3. Deflector for Irregular Tubes
4. Bottom Creasing Line Station
5. Air Vent Perforation
6. Bottom Opening Unit
7. Valve Station with Winding Station
8. Pasting Internal Strengthen Sheet Unit
9. Bottom Closing Stations
10. Pasting External Strengthen Sheet Unit
Technical parameters of our production line:
ZT9804 Performance
|
Speed
|
130~150 tubes/min
|
|
Tube length
|
670~1035 mm
|
|
Tube width
|
420~600 mm
|
|
Space between tape steps
|
20 mm
|
|
Tube Cut Length
|
670~1035mm
|
|
Number of ply
|
2~4 paper + 1 PP/PE)
|
|
Diameter of print roller
|
ø144～ø314 mm
|
|
Printing width
|
1300 mm(MAX)
|
|
Paper reel width
|
860~1260 mm
|
|
Paper reel diameter
|
Max. 1, 300 mm
|
|
Air consumption
|
1,100L/min
|
|
Main drive motor
|
30kw
|
|
Size of whole set
|
34.3m×2.4m×2.7m( L×W×H)
|
|
Total weight
|
30 T
|
HD4913 Performance
|
Speed
|
80~130 bags/min
|
|
Bag length
|
520~880mm
|
|
Bag width
|
420~600 mm
|
|
Bottom width
|
90~130mm
|
|
Bottom open width
|
200~380mm
|
|
Distance between bottom centers
|
420~780mm
|
|
Valve sheet length
|
100~250mm
|
|
Valve sheet width
|
120~170mm
|
|
Main drive motor
|
33kw
|
|
Total weight
|
22.7T
|
|
Size of whole set
|
21.3m×2.3.m×1.8m ( L×W×H)
|
|
Valve sheet reel diameter
|
Max.1,300mm
|

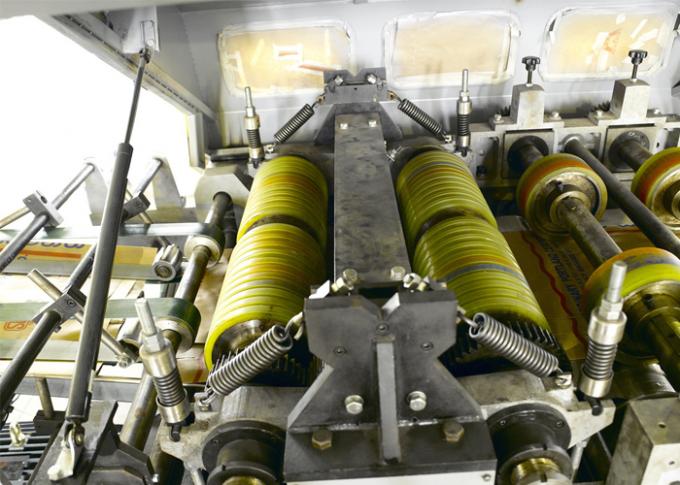

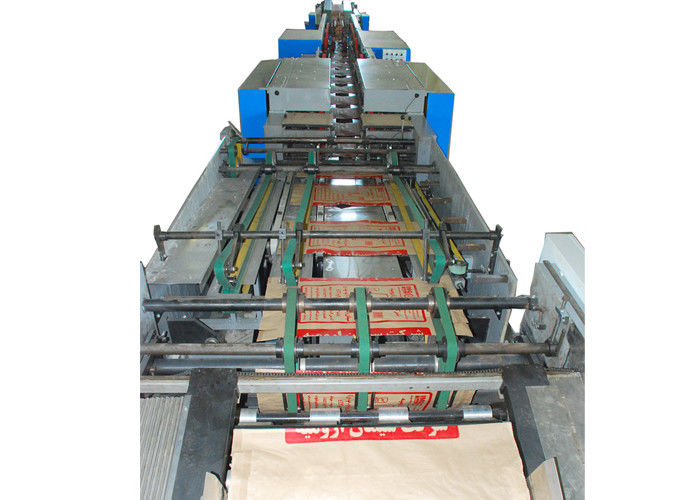

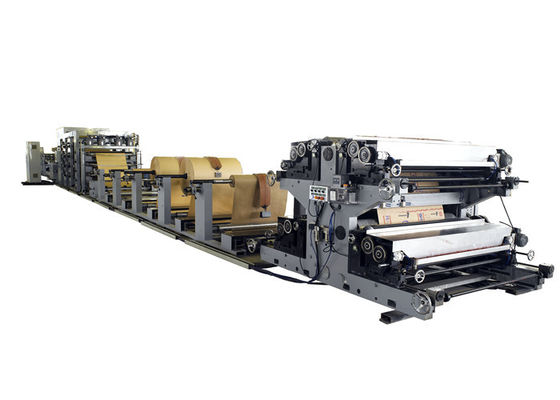

Our machine Details:
Sample bags:
Fairs and customers:
If you are interested in our products, please do not hesitate to contact us.
