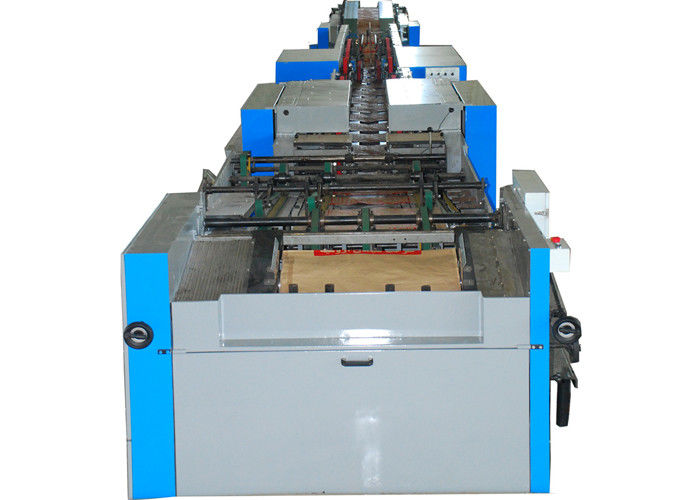

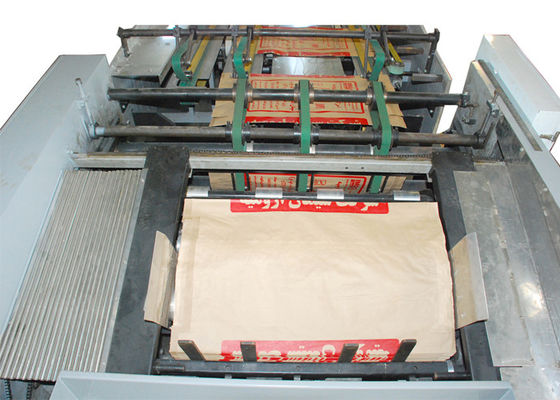

Kraft Paper Bags / Food Paper Bag Making Machine with Strengthen Sheet , High Speed

Kraft Paper Bags / Food Paper Bag Making Machine with Strengthen Sheet , High Speed

    • Kraft Paper Bags / Food Paper Bag Making Machine with Strengthen Sheet , High Speed
    • Kraft Paper Bags / Food Paper Bag Making Machine with Strengthen Sheet , High Speed
  • Kraft Paper Bags / Food Paper Bag Making Machine with Strengthen Sheet , High Speed

    Product Details:

    Place of Origin: China; German ; Japan
    Brand Name: Tecon
    Certification: CE
    Model Number: HD4916BD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs or 1 set
    Price: $ 724,000---843,000 / pcs
    Packaging Details: Wooden box , 3*40-foot high cabinet
    Delivery Time: 3-5months
    Payment Terms: L/C, T/T,
    Supply Ability: over 10 sets / year
    Contact Now
    Detailed Product Description
    Type: HD4916BD Manufacturer: Tecon, China
    Rotary Feeder: 1 Tube Alignment: 1
    Deflector For Irregular Tubes: 1 Bottom Incision Station: 1
    Air Vent Perforation: 1 Bottom Crease Line Stations: 1
    Bottom Opening Stations: 1 Valve Station With Winding Station: 1
    Bottom Pasting Stations: 1 Bottom Closing Stations: 1
    Pressing Station: 1 Counting And Packeting Station: 1
    Reception: 1 Electric System: 1
    High Light:

    food paper bag machine

    ,

    paper bags making machine

     HD4916BD Food Kraft Paper Bags Making Machine

               with Strengthen Sheet





    Features of our full-automatic paper bag production line:

    1.        Flat & glued bottom with filling valve;

    2.        Different types for cement, chemicals, foods, tea, etc.

    3.        4-color automatic printing

    4.        2~4 paper layers, with one extra PE/PP film available

    5.        35~50 million bags/year

    6.        Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system

    7.        Full technical service for installation, training and maintenance

    8.        Full solution for factory construction and materials purchase.





    Technical parameters of our production line:











    HD4916BD Bottomer Machine

    (bottomer with strength sheet pasting unit)





    Operating condition



    Working hour

    22 hours/day

    Design temperature

    0~40℃

    Design humidity

    MAX. 95%

    Number required

    1 unit

    Model name

    HD4916BD





    Performance



    Mode

    HD4916BD

    Speed

    MAX 80 bags/min

    Tube Width

    380~620 mm

    Bottom Width

    80~160 mm

    Valve Sheet Length *Width

    (100-300)﹡(120-340)adjustable

    Bag Length

    390~1020 mm

    Bottom Center Distance

    290~860 mm

    Number of ply

    2~4paper+1 PP/PE

    Strength sheet unit

    YES

    Strength sheet  length *width

    (270~520)﹡(80~160)

    Main Drive Motor

    35KW

    Machine size

    23.5﹡2.3﹡1.8(M)

    Machine weight

    N34(T)





    Composing of the machine

    HD4916BD Bottomer Machine





    (bottomer with strength sheet pasting unit)



    Name

    Quantity

    High speed feeder machine

    1

    Perforation of the exhaust outlet unit

    1

    Tube opening unit

    1

    Automatic gluing machine

    1

    Scrip sealing machine

    1

    Bag bottom turning unit

    1

    Counting and delivery line

    1

    Automatic delivering out unit

    1

    Piling up platform

    1

    Electric control unit

    1 (German Siemens)

    Vacuum-pump

    1 (German Rietschele)

    Bearing

    (Janpan NSK)











    Brief Introduction of Our Company



    Foshan Tecon Package Machinery CO., LTD is a high_tech equipment manufacturer. We designed the

     first production line for paper bag 20 years ago, that's is about 1996, and now we are listed in the world

     top three in this industry and the only one in China able to design & manufacture the whole production

    line of  bottom sealed paper bag.



    The leading product of our company is the "high-speed automatic bottom-pasted bag making machine".  It is composed of a tuber machine and a bottomer machine.





    The brief history of our company:



    Our equipment has served Chinese paper bag industry for 20 years and started running into oversea

    mar-ket for 13years. Now there are more than30 Tecon paper bag production lines operating in 13 countries, and this is not complete statistics .



    They are producing paper bags used for packing cement, sugar, milk powder, rice, chemical products,

    etc.  We have sold to such as: Yemen, America, Iran,Malaysia,Syria. These clients have bought our cement paper bags production lines many years ago .



    The recent clients we can contact now are Togo, Rwanda,Egypt, Kazakhstan,India, Indonesia , Sri Lanka and so on. They have bought our cement paper bags production lines. Clients in China like Shanghai province, Shandong province, Liaoning province, Jangsu province, Sichuan province, Guangdong province(where our factory located) have bought our chemical paper bags production lines, and many clients have bought two production lines.













    Our machine:



    Automatic valve paper bag machine for cement,chemicals and food

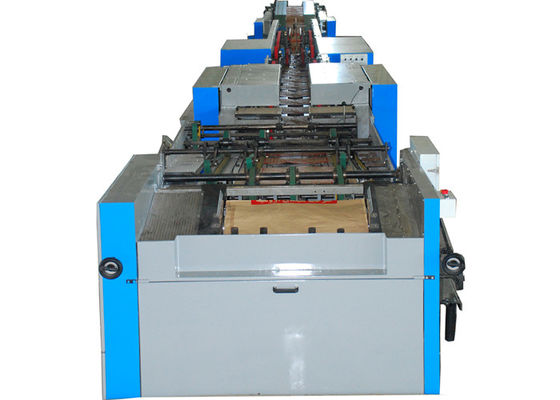

    Kraft Paper Bags / Food Paper Bag Making Machine with Strengthen Sheet , High Speed









    Sample bags:



    Kraft Paper Bags / Food Paper Bag Making Machine with Strengthen Sheet , High Speed





    If you are interested in our products, please do not hesitate to contact us.
