High-speed and Full-Automatic Paper Bag Making Machine Valve Paper Sack Production Line

High-speed and Full-Automatic Paper Bag Making Machine Valve Paper Sack Production Line

High-speed and Full-Automatic Paper Bag Making Machine Valve Paper Sack Production Line

Product Details:

Place of Origin: China
Brand Name: Tecon
Certification: CE
Model Number: ZT9804

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 3 months after received your payment
Payment Terms: T/T or L/C
Supply Ability: 16pcs per year
Contact Now
Detailed Product Description
Total Weight: 30T Main Drive Motor: 30kw
Size: 34.3m×2.4m×2.7m( L×W×H) Air Consumption: 1,100L/min
Working Hour: 22 Hours/day Design Temperature: 0~40℃
High Light:

paper bag machinery

,

paper bag machine

High Speed Paper Bag Making Machine Valve Paper Sack Production Line Full Automatic



Brief Introduction:



Foshan Tecon Package Machinery CO., LTD is a high-tech equipment manufacturer. We designed the first production line for paper bag 20 years ago, that's is about 1996, and now we are listed in the world top three in this industry and the only one in China able to design & manufacture the whole production line of bottom sealed paper bag.



The leading product of our company is the "high-speed automatic bottom-pasted bag making machine".  It is composed of a tuber machine and a bottomer machine.



We have sold to these countries such as: Yemen,America,Iran,Malaysia,Syria,Togo,Rwanda,Egypt,Kazakhstan,India,Indonesia,Sri Lanka and so on. Our products have won CE certificate, and have lots of patents.



Features of our full-automatic paper bag production line:

  1. Flat & glued bottom with filling valve;
  2. Different types for cement, chemicals, foods, tea, etc.
  3. 4-color automatic printing
  4. 2~4 paper layers, with one extra PE/PP film available
  5. 35~50 million bags/year
  6. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control
    system, Siemens electrical system
  7. Full technical service for installation, training and maintenance
  8. Full solution for factory construction and materials purchase.



Technical parameters of our production line:



ZT9804 Tuber Machine
Operating condition



Working hour

22 hours/day

Design temperature

0~40℃

Design humidity

MAX. 95%

Number required

1 unit

Model name

ZT9804



Performance





Speed

130~150 tubes/min(Depends on paper quality, number of ply and operators’

skill.)

Tube length

670~1035 mm

Tube width

420~600 mm

Space between tape steps

20 mm

Tube Cut Length

670~1035mm

Number of ply

2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)

Diameter of print roller

ø144~ø314 mm

Printing width

1300 mm(MAX)

Paper reel width

860~1260 mm

Paper reel diameter

Max. 1, 300 mm

Air consumption

1,100L/min

Main drive motor

30kw

Size of whole set

34.3m×2.4m×2.7m( L×W×H)

Total weight

30 T



Composing of the production line


ZT9804 Tuber Machine



Name

Quantity

4-color printing machine

1

Paper reel stands

1

Paper web guider

1

Automatic paper rectifier

1

Auxiliary paper driver

1

Perforation machine

1

Latitudinal gluing machine

1

Longitude gluing machine

1

Tubes forming unit

1

Driving tearing-off

1

Delivery & counting line

1

Electric control system

1 (Schneider, German)

Air compressor

1

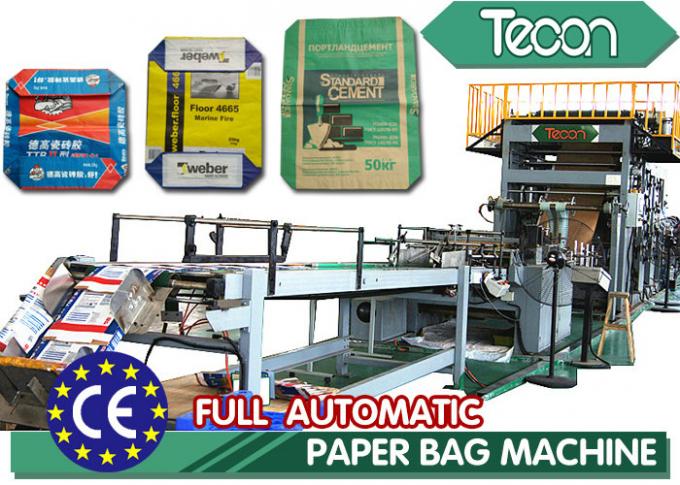

Our machine:

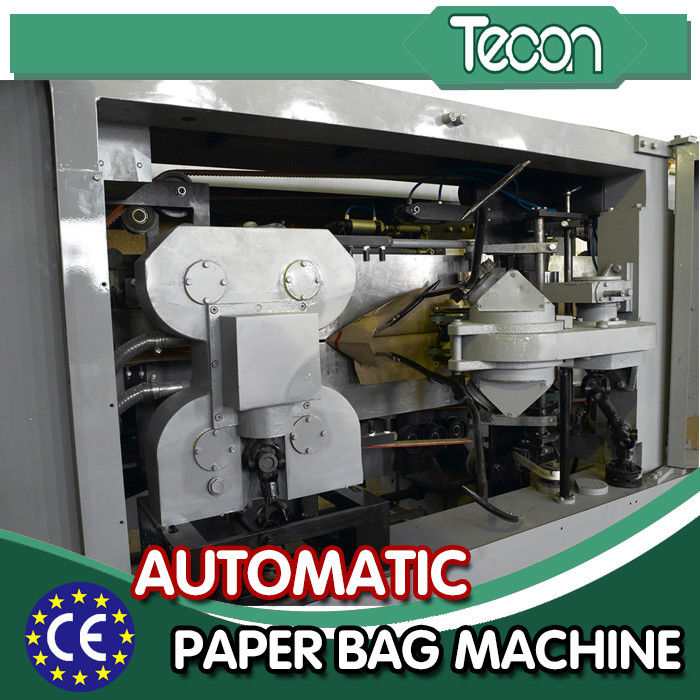

Automatic valve paper bag machine for cement,chemicals and food



High-speed and Full-Automatic Paper Bag Making Machine Valve Paper Sack Production Line

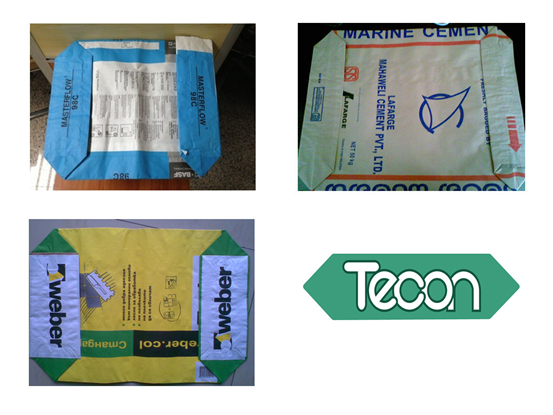

Sample bags:



High-speed and Full-Automatic Paper Bag Making Machine Valve Paper Sack Production Line



Fairs and customers:



High-speed and Full-Automatic Paper Bag Making Machine Valve Paper Sack Production Line



If you are interested in our products, please do not hesitate to contact us.
