High Speed Starch Food Paper Bag Forming Machine with PLC Control

High Speed Starch Food Paper Bag Forming Machine with PLC Control

    • High Speed Starch Food Paper Bag Forming Machine with PLC Control
    • High Speed Starch Food Paper Bag Forming Machine with PLC Control
    • High Speed Starch Food Paper Bag Forming Machine with PLC Control
    • High Speed Starch Food Paper Bag Forming Machine with PLC Control
  • High Speed Starch Food Paper Bag Forming Machine with PLC Control

    Product Details:

    Place of Origin: China
    Brand Name: Tecon
    Certification: CE
    Model Number: ZT9804S+HD4913

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden box , 5*40-foot high cabinet
    Delivery Time: 3-5months
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets per year
    Contact Now
    Detailed Product Description
    Type: ZT9804S Manufacturer: Tecon, China
    Main Power: 47kw Total Weight: 33T
    Working Hour: 22hours Per Day Air Consumption: 1100l/min
    Machine Length: 35.3m Machine Width: 2.4m
    Machine Height: 2.7m Pow Supply: 380V
    Machine Color: Can Be Customized

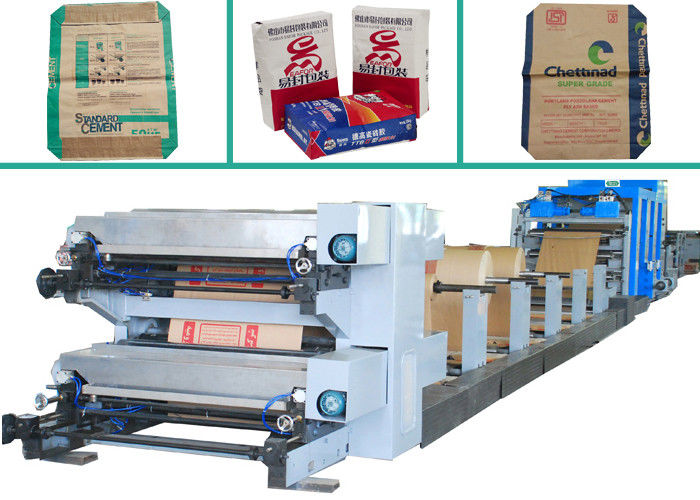

    High Speed Starch Food Bag Making Machine with PLC Control For Paper Bag​​


    Features of our full-automatic paper bag production line:

    1.        Flat & glued bottom with filling valve;

    2.        Different types for cement, chemicals, foods, tea, etc.

    3.        4-color automatic printing

    4.        2~4 paper layers, with one extra PE/PP film available

    5.        35~50 million bags/year

    6.        Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system

    7.        Full technical service for installation, training and maintenance

    8.        Full solution for factory construction and materials purchase.




    Technical parameters of our production line:
    ZT9804S Tuber Machine


    Speed
    80~120 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
    Tube length400~1400 mm
    Tube width380~620 mm
    Type of cuttingStep cut&Flat cut
    Number of ply2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
    Printing width1300 mm(MAX)
    Paper reel width660~1260 mm
    Paper reel diameterMax. 1, 300 mm
    Main drive motor47kw
    Size of whole set35.3m×2.4m×2.7m( L×W×H)
    Total weight32.5T


    HD4913 Bottomer

    Working speed80~130 bags/min
    Bag width420~600 mm
    Bag length520~880mm
    Bottom width90~130mm
    Distance between bottom centers420~780mm
    Valve sheet length100~250mm
    Valve sheet width120~170mm
    Main drive motor33kw
    Total weight22.7T


    ZT9804S Tuber Machine compose of following parts



    NameQuantity
    4-color printing machine1

    utomatic paper rectifier1
    Auxiliary paper driver1
    Perforation unit1
    Latitudinal gluing machine1
    Longitude gluing machine1
    Tubes forming unit1
    Driving tearing-off unit1
    Delivery and counting unit1
    Electric control system1 (Schneider)
    Air compressor1
    Servo system1


    HD4913 Bottomer machine compose of following parts


    NameQuantity
    High speed feeder machine1
    Perforation machine1
    Tube opening unit1
    Automatic gluing machine1
    Scrip sealing machine1
    Bag bottom turning unit1
    Counting and delivery line1
    Piling up platform1
    Electric control unit1
    Delivery and counting unit1
    Electric control system1 (Schneider, German)
    Vacuum-pump1 (Schneider, German)





    Why chose us?

    Foshan Tecon Package Machinery CO., LTD is a high_tech equipment manufacturer. We designed the
     first production line for paper bag 20 years ago, that's is about 1996, and now we are listed in the world
     top three in this industry and the only one in China able to design & manufacture the whole production
     line of  bottom sealed paper bag.

    The leading product of our company is the "high-speed automatic bottom-pasted bag making machine".
    It is composed of a tuber machine and a bottomer machine.

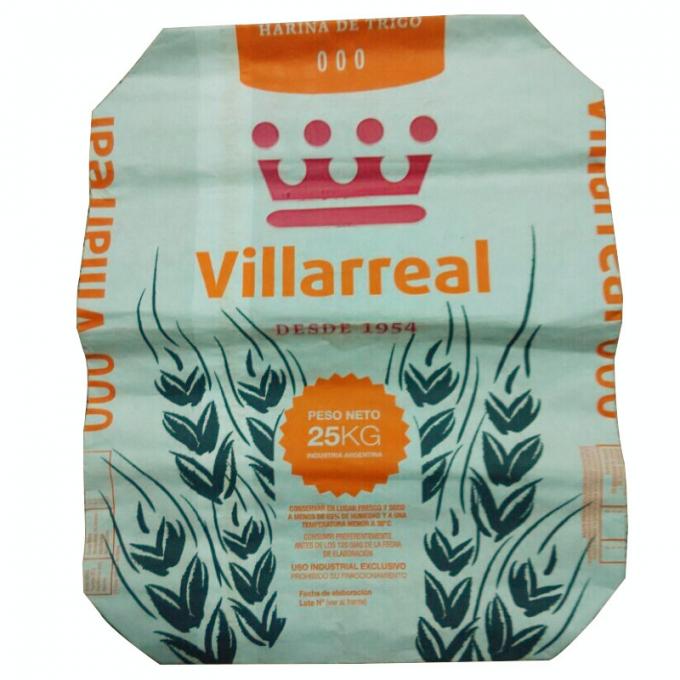

    Sample bags:
    High Speed Starch Food Paper Bag Forming Machine with PLC Control
    High Speed Starch Food Paper Bag Forming Machine with PLC Control
